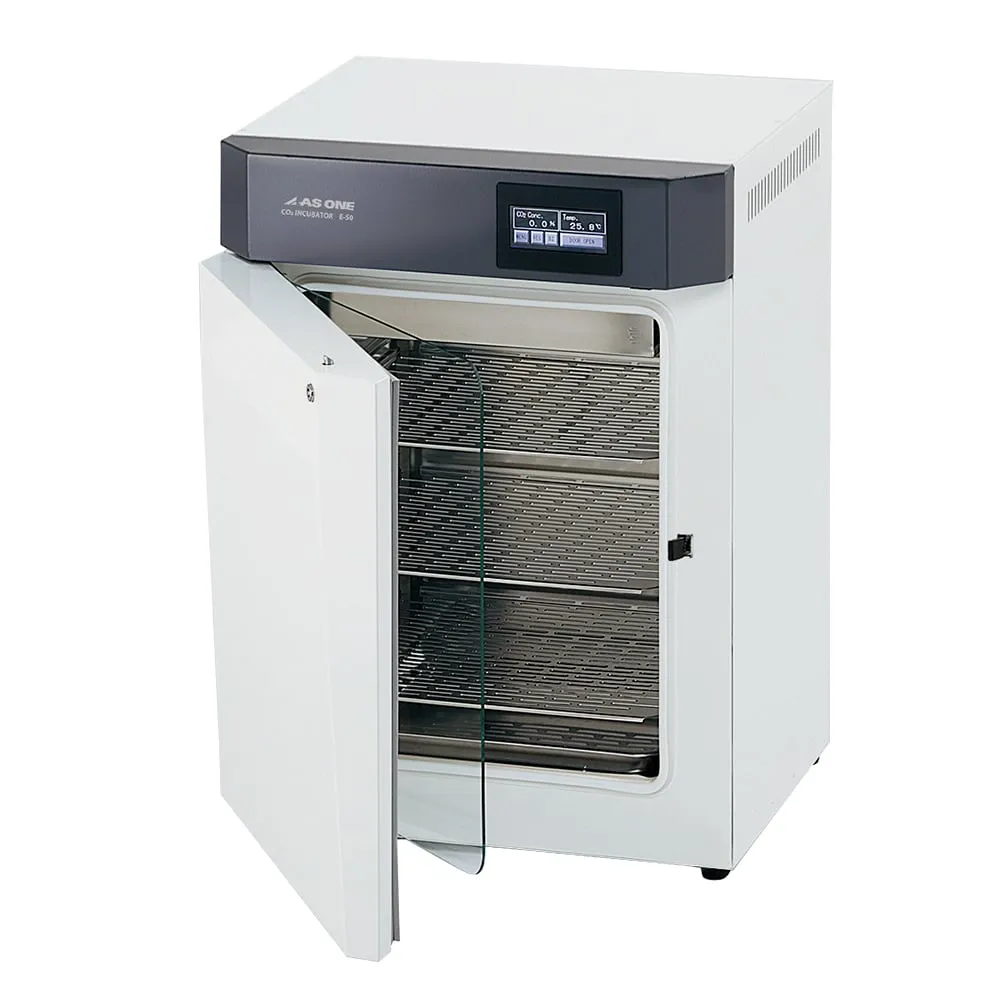

3-6815-02-28 CO2 Incubator Internal Circulation Fan with Pre-shipment Validation E-50
Product Description
Product Model: 3-6815-02-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-6815-02-28
Product Brand: AS ONE Corporation
Features
- Intuitive setting is possible by touch panel operation.
- Adopts an advanced temperature control model for stable temperature control.
- Operation, temperature and CO2 concentration can be recorded using a USB flash drive.
- Although it is a tabletop type, you can place 6 well plates and 9 φ100 mm dishes side by side on the shelf plate.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature points: 9 37 degrees C, CO2 concentration
- Capacity (L): 50
- External dimensions (mm): 490 x 460 x 680
- Temperature setting range: room temperature + 5 ~ 50 degrees C
- Temperature Sensor: Platinum temperature resistor
- CO2 concentration range: 0 ~ 20%
- CO2 sensor: NDIR (infrared) type
- Heating method: Direct heat
- Humidification system: Natural evaporation system (attached tray water injection)
- Convection: Internal circulation fan
- Safety device: overcurrent protective f***/overtemperature protection device (digital setting)
- Internal dimensions: 350 x 325 x 440 mm
- Number of shelves: 3
- Shelf board dimensions: 330 x 310 mm
- Shelf position: 8 levels (30 mm pitch)
- Operation panel: Touch panel (analog resistive film type)
- Power supply: 100 VAC 50/60 Hz Cord length/1.9 m
- Security settings: 4-digit PIN code lock with emergency physical key
- *Use only for research and experimental purposes. It can not be ***d for medical purposes.
- Local validation services (IQ/OQ) are also available. Please contact us.
- *The on-site validation service is a service that performs installation qualification (IQ) and operational performance qualification (OQ) at the installation site and submits an inspection form.
- *If you would like to request a local IQOQ, please contact us separately. We will need your installation address for the estimate.
