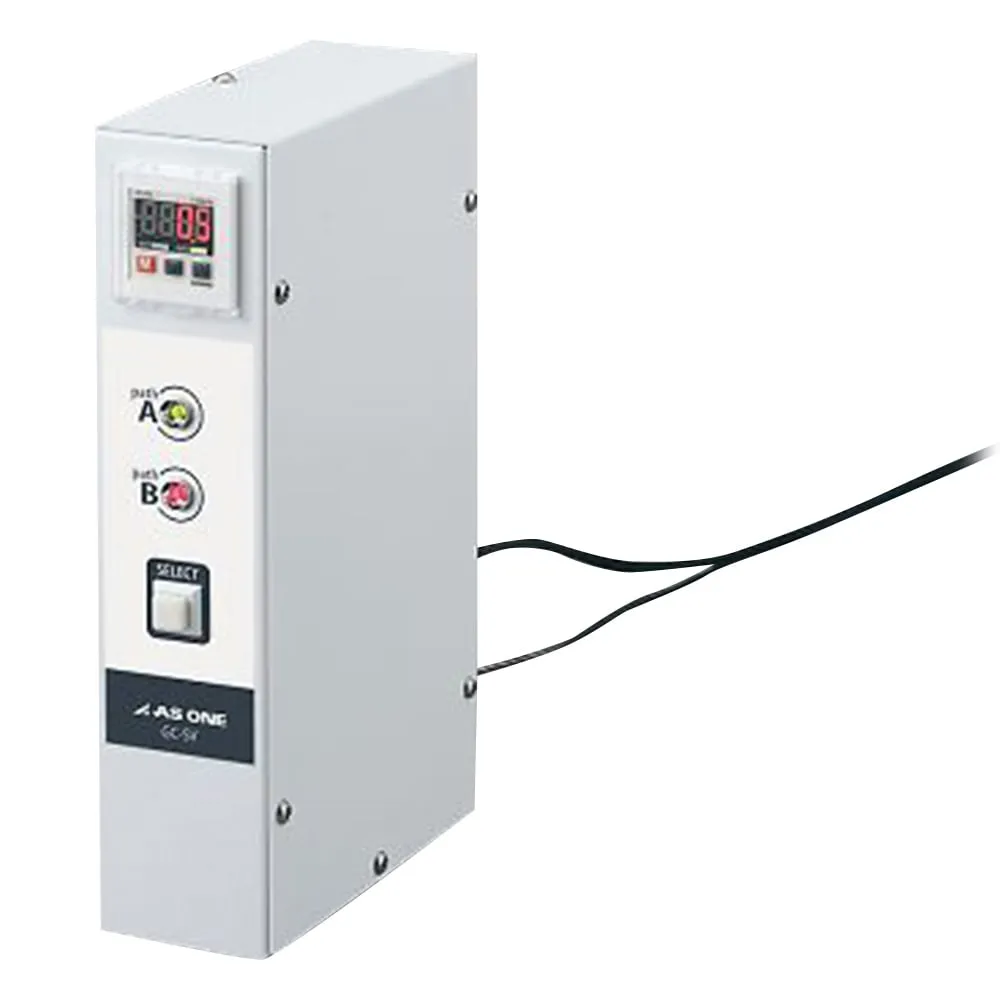

3-810-01 Automatic Gas Cylinder Switching Device (Magnetic Valve Type) GC-SV
Product Description
Product Model: 3-810-01Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 3-810-01
Product Brand: AS ONE Corporation
Features
- For preventing gas shortages in CO2 incubators!
- A device for connecting two gas cylinders (regulators) to one incubator.
- During operation, the lamp (main side: green/sub side: red) lights and the pressure in the flow path is displayed digitally.
- The buzzer sounds for a few minutes when the switch is made and then the LED lights to let you know.
- One of the internal solenoid valves is always open and never closes in the event of a power failure. (You can force the switch with the switch button.)
Spec
- Size (mm): 65 x 185 x 255
- usable gas: CO2
- Connection port: outer diameter φ6mm rigid tube or Rc 1/8 female screw
- pressure of ***: 0.06MPa or less
- Power supply: AC100V 50/60Hz (power supply cable length: about 1.6 m)
