63-6855-49 Insulation DC-DC Converter Vout: ± 15 V dc 9 to 36 V dc 10 W 24 V dc JTF1024D15
Product Description
Product Model: 63-6855-49Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6855-49
Product Brand: XP Power
Features

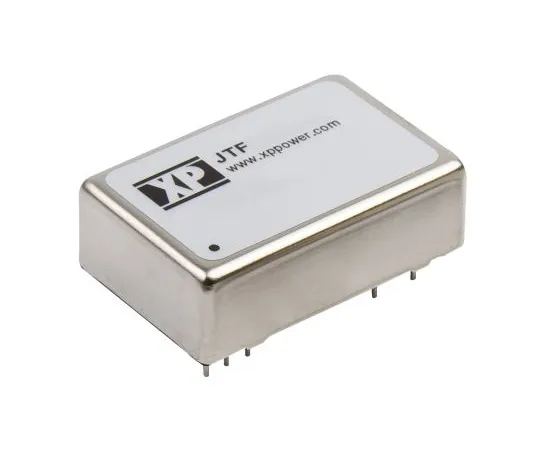

- XP Power JTF10 Series Insulated DC-DC Converter
- XP Power's JTF10 series is a reliable single/dual output 10 W insulated DC-DC converter. Packaged in industry-standard packaging, it features 1600 V dc breakdown voltage and high efficiency of up to 90%. It is compact, has a wide input range of 4:1, has a standard remote on/off function, and has an operating temperature of -40 to +105 °C.
- 10 W Insulated DC-DC Converter 1600 V dc Insulated High Power Density Single and Dual Output 4:1 Wide Input Range Operating Temperature Range: -40 → +105 °C High Efficiency 90% Industry Standard Package Substrate Mounting Standard Remote On/Off
Spec
- Quantity: 1 piece
- Output Voltage: ± 15 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.6 kV dc
- Rating Power: 10 W
- Output current: ± 330 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 87%
- Package: DIP
- Road regulation: ± 1%
- Maximum temperature: + 105 degrees C
- Series: JTF
- RoHS compliance status: Compliance
- Securities Code: 122 -7513
