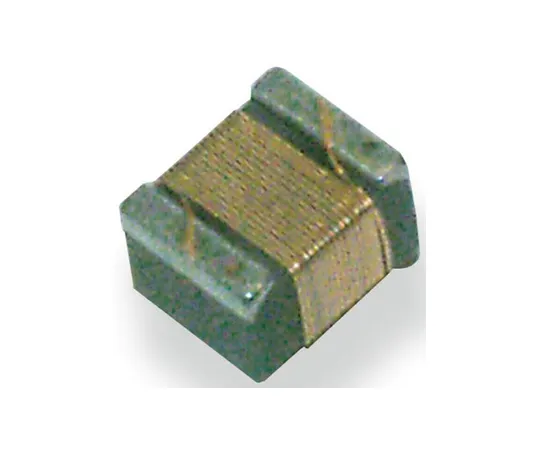

63-5107-92 Murata LQW15A Series Type 0402 Wire-wound SMD Inductor with a Ferrite Core, 33 nH ±5% Wire-Wound 260mA Idc Q:25 LQW15AN33NJ00D
Product Description
Product Model: 63-5107-92Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5107-92
Product Brand: Murata
Features
- Murata 0402 LQW15AN_00D Series Wire Wound Inductors (0.01μH - 0.047μH). High quality coil inductors designed for VHF and UHF applications. High resonance frequency. Low tolerance of inductance values. Applications: High frequency circuits for wireless telecommunications equipment such as Bluetooth, GSM, W-LAN.
Spec
- Quantity：1bag(10pieces)
- Inductance : 33 nH
- Maximum DC Current : 260mA
- Package/Case : 0402
- Length : 1mm
- Depth : 0.5mm
- Height : 0.5mm
- Dimensions : 1 x 0.5 x 0.5mm
- Tolerance : ±5%
- Maximum DC Resistance : 630mΩ
- Series : LQW15A
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 3.2GHz
- Minimum Quality Factor : 25
- CODE No.:792-6439
