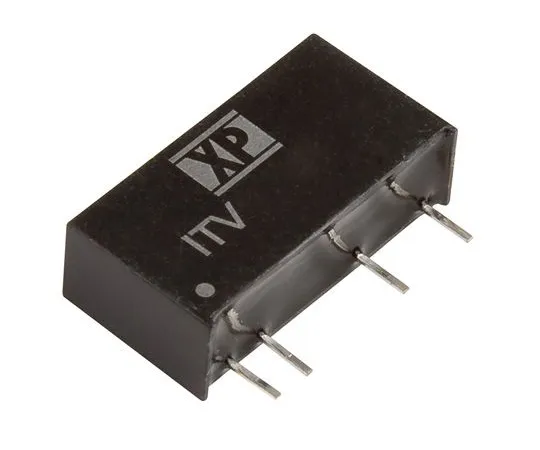

63-6844-36 Insulation DC-DC Converter Vout: 12 V dc 10.8 to 13.2 V dc 1 W 12 V dc ITV1212SA
Product Description
Product Model: 63-6844-36Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6844-36
Product Brand: XP Power
Features
- XP Power-ITV Series Insulated DC-DC Converter
- The XP Power ITV series DC-DC converter is a rugged and reliable product that can be ***d in a variety of applications. The ITV series is a single-output converter that ***s the SIP package.
- Features and benefits: Single output and dual output. SIP package. Industry standard pin alignment. MTBF >3500 hours Wide operating temperature range: -40 °C → +105 °C, at full load: 95 °C (ambient temperature).
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 10.8 to 13.2 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 3 kV dc
- Rating Power: 1W
- Output current: 83.3 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 80%
- Packages: SIP
- Load regulation: -2.5 to + 5%
- Maximum temperature: + 105 degrees C
- Series: ITV
- RoHS compliance status: Compliance
- Securities Code: 122 -6063
