63-4675-16 RS PRO 2 x 115V, 2 x 15V Toroidal Transformer, 5VA 124-3852
Product Description
Product Model: 63-4675-16Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4675-16
Product Brand: RS PRO
Features

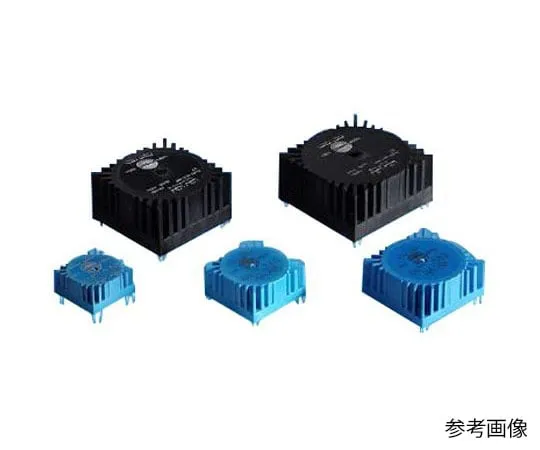

- RS Pro Toroidal PC Transformer 1.6 VA→25 VA
- The RS Pro Toroidal PC transformer is a compact and lightweight transformer with high efficiency and low profile. These toroidal transformers feature low iron loss and low induction noise. Dual 115 V primary windings that can be connected in parallel or in series.
- Features • Low stray magnetic field Reduction of standby current Test voltage 1st order -2 order 4.0 KV Easy to mount - M4 Center bush ambient operating temperature: +60°C maximum Fully compliant with RoHS and REACH
Spec
- Primary Voltage Rating:2 x 115V
- Secondary Voltage Rating:2 x 15V
- Power Rating:5VA
- Height:19.5mm
- Weight:144g
- Dimensions:49.7 x 49.7 x 19.5mm
- Maximum Operating Frequency:50Hz
- Mounting Type:Through Hole
- Isolation Voltage:4kV
- CODE No.:124-3852
