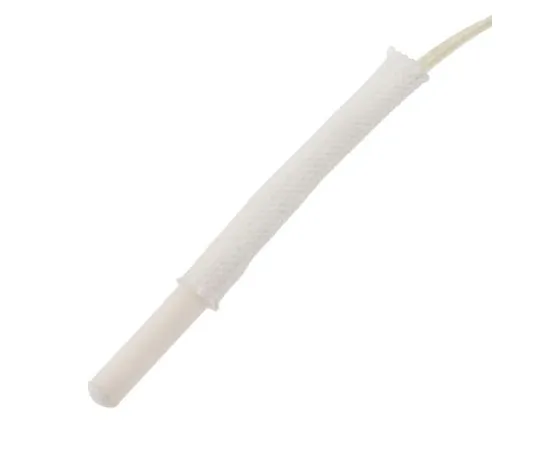

63-6763-45 RS PRO Type PT 100 Thermocouple 15mm Length, 2.8mm Diameter, -50°C → +350°C 110-4462
Product Description
Product Model: 63-6763-45Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6763-45
Product Brand: RS PRO
Features
- Superior performance, suitable for air and immersion applications (when protected). If unprotected, it only adapts to dry, contaminant-free environments. The protection/sheath required for immersion in liquids, corrosive substances, processes, etc., is required.
- Platinum Resistance Detector with Extension Lead - Ceramic Winding Type
- RS Pro Pt 100 Ω Ceramic Winding Type Platinum Resistance Sensor Product.
- Winding Structure, Class B High Stability Ext***ed Lead Length (Glass Fiber Insulation): 300 mm, 500 mm, 1000 mm 4 Wire Configuration Working Range: -50 → +350 oC
Spec
- Thermocouple Type:PT 100
- Probe Diameter:2.8mm
- Probe Length:15mm
- Probe Material:Glass Fibre
- Termination Type:Lead Wire
- Cable Length:1m
- CODE No.:110-4462
