Electronic/Electrical Parts and Controll Equipments

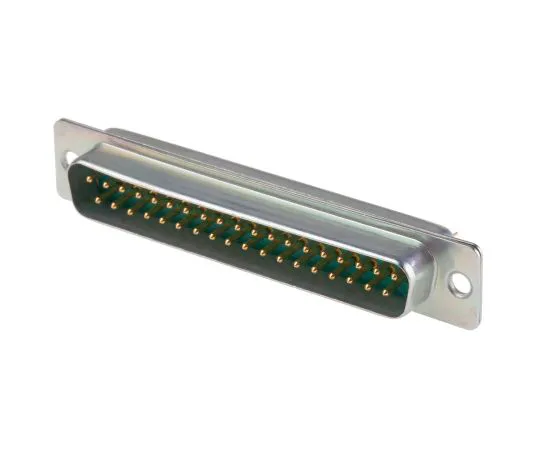

63-4632-63 RS PRO 37 Way Panel Mount D-sub Connector Plug 482-806
Product Description
Product Model: 63-4632-63Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4632-63
Product Brand: RS PRO
Features
- "Harness through" dimensions are those that allow connectors and wire assemblies to pass through openings in the panel. (D connector terminated with a Speed-bloc (TM) ribbon cable, IDC type, or other version)
- High performance straight
- Compatible with BS9523, F0013 and Mil-24308 compliant products Reliable, military performance 2.5 μm gold plating Minimum number of insertions and removals 500 times Probe-proof contacts with sleeves Highly moisture-resistant integral insulation Environmental classification 56 day solder cup structure
- Panel mounting
- Refer to D connector cutter (e.g. part number < 477-8690') 477-8690 for appropriate drilling tools
- (* Standard mounting dimensions)
Spec
- Number of Contacts:37
- G***er:Male
- Body Orientation:Straight
- Mounting Type:Panel Mount
- D Connector Type:Standard D-Sub
- Termination Method:Solder
- Current Rating:5.0A
- Housing Material:Steel
- Voltage Rating:750.0 V
- Length:69.32mm
- Width:10.82mm
- Depth:12.55mm
- Dimensions:69.32 x 10.82 x 12.55mm
- Minimum Operating Temperature:-65.0°C
- CODE No.:482-806
