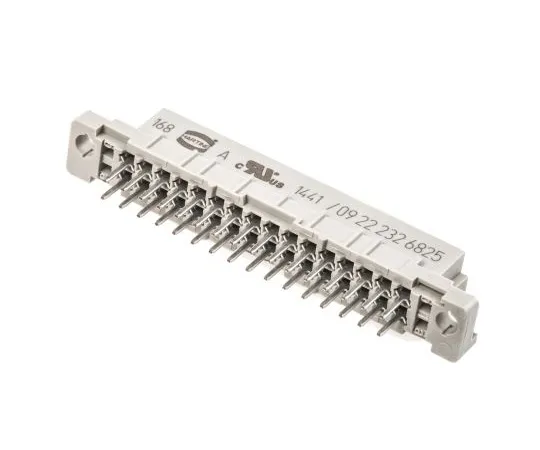

63-4632-52 DIN 41612 Connector Female 32 Pole 2 Row 2.54 mm Pitch 09222326825
Product Description
Product Model: 63-4632-52Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-4632-52
Product Brand: HARTING
Features
- Harting DIN41612 Complimentary Type 2B Backplane Signal Connector
- The Harting DIN41612 Complimentary Type 2B backplane signal connector is designed for substrate applications up to 2 A per contact.
- The DIN41612 Complimentary Type 2B backplane signal connector provides an economical solution for many electronic signal connector design applications with excellent cyclic life, abrasion resistance and high durability.
- Operating Temperature Range: -55→+125°C Up to 2 A (per contact) Test Voltage: 1 kV Contact Resistance: 20 MΩ or Less Thermoplastic Resin - Copper Alloy with Glass Fiber Contact Termination Method - Solder
Spec
- Quantity: 1 piece
- Number of contacts: 32
- G***er: Female
- Number of lines: 2
- Body orientation: Straight
- Terminal Method: Solder
- Loading column: a/b
- Type: 2B
- pitch: 2.54 mm
- Mounting type: through hole
- Class Rating: C2
- Rated current: 2A
- RoHS compliance status: Compliance
- Securities Code: 481 -847
