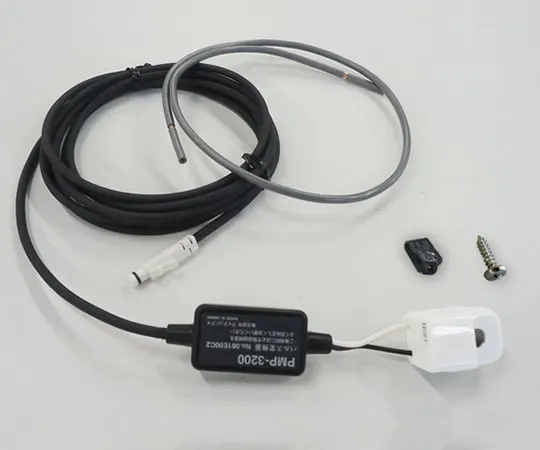

61-8494-15　Pulse Detection Module for Power Measurement　PMP-3200

model: 61-8494-15

brand: T&D Corporation

category: toner

Product Description

Product Model: 61-8494-15Product Brand: T&D Corpora […]

18866622123

WeChat ID: 18866622123

Product Model: 61-8494-15

Product Brand: T&D Corporation

Adaptive model: TR-55i-P,RTR-505-P,RTR-505-PL
Input:
Sensor: Division clamp type current sensor window diameter φ6
Pulse detection current: 10mA - 40mA, OFF current/0.5mA or less (available for both poles)
Pulse width: 10msec - 30msec
Minimum pulse interval: Pulse width x 2 or 30ms or more, whichever is larger
Output:
Signal output (negative logic pulse): High/power voltage x 0.7 or more, Low/1V or less
Pulse width: 3msec - 9ms
Power supply: 3.6V (supplied by RTR-505P/TR-55i-P)
Usage environments: Temperature/-10℃ - 50℃, Humidity/10%RH - 90%RH (no condensation)
