Spec

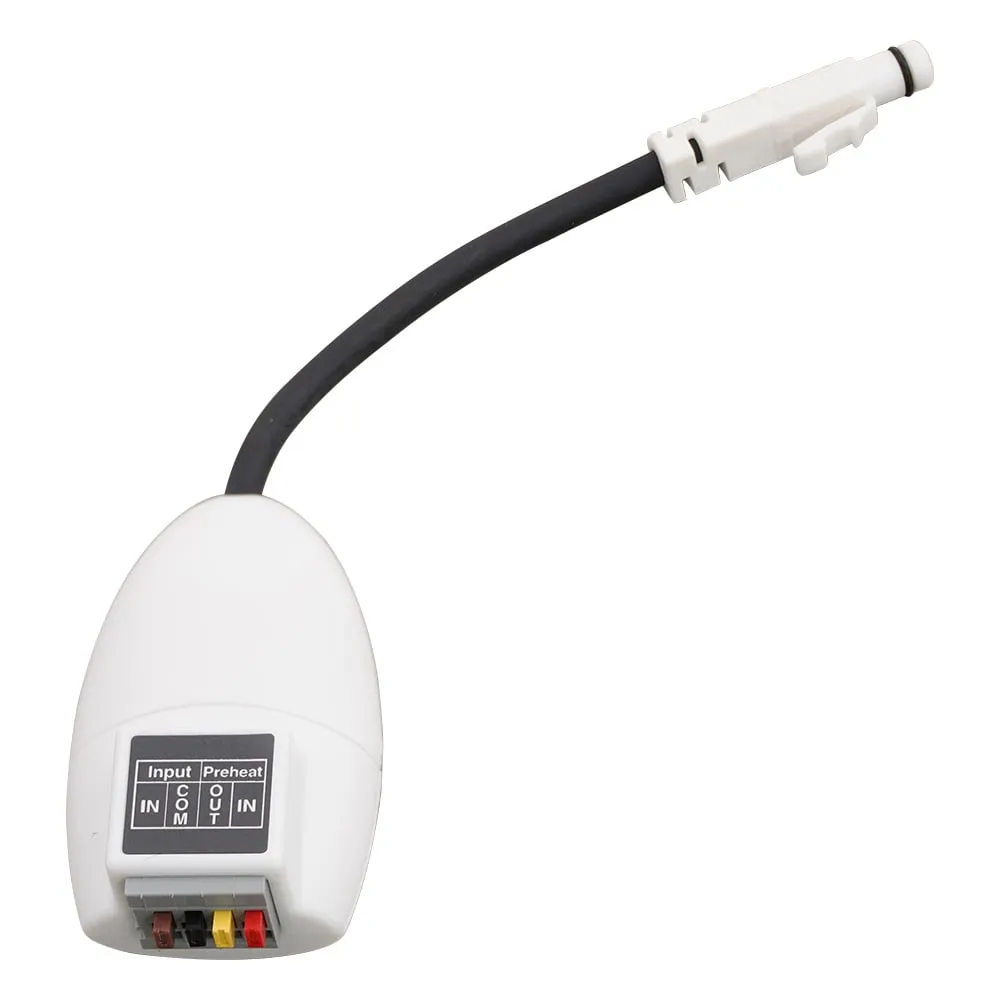

• Adaptive model: TR-55i-V,RTR-505-V/505-VL
• Material: Body/polycarbonate, Wire/vinyl chloride coated wire
• Measurement target: Voltage
• Input Voltage Range: 0 - 999.9mV, 0 - 22V
• Breakdown voltage: ±28V
• Measurement resolution:
• 0 - 400mV: 0.1mV
• 400mV - 800mV: 0.2mV
• 800mV - 999mV: 0.4mV
• 999mV - 3.2V: 1mV
• 3.2V - 6.5V: 2mV
• 6.5V - 9.999V: 4mV
• 9.999V - 22V: 10mV
• Measurement accuracy: Module temperature/
• -40 - 10℃: ±1mV + 0.5% of read value
• 10 - 40℃: ±0.5mV + 0.3% of read value
• 40 - 80℃: ±1mV + 0.5% of read value
• Input impedance: mV range/approx 3MΩ, V range/approx 1MΩ
• Preheat function: Switching available for 3V - 20V 100mA, 1 second to 999 seconds with one-second resolution
• Capacitor load is 330μF or less (*)
• Sensor connection: Electric cable insertion type (4 terminals)
• Applicable wire: Single line/φ0.32 - φ0.65mm (AWG28 - AWG22), Recomm***ed φ0.65mm (AWG22), Twisted wire/0.32mm2 (AWG22), Element wire diameter φ0.12mm or more
• Stripping length: 9-10mm
• Operating environment: - 40℃ - 80℃, Humidity 90% or less (no condensation) for storage
