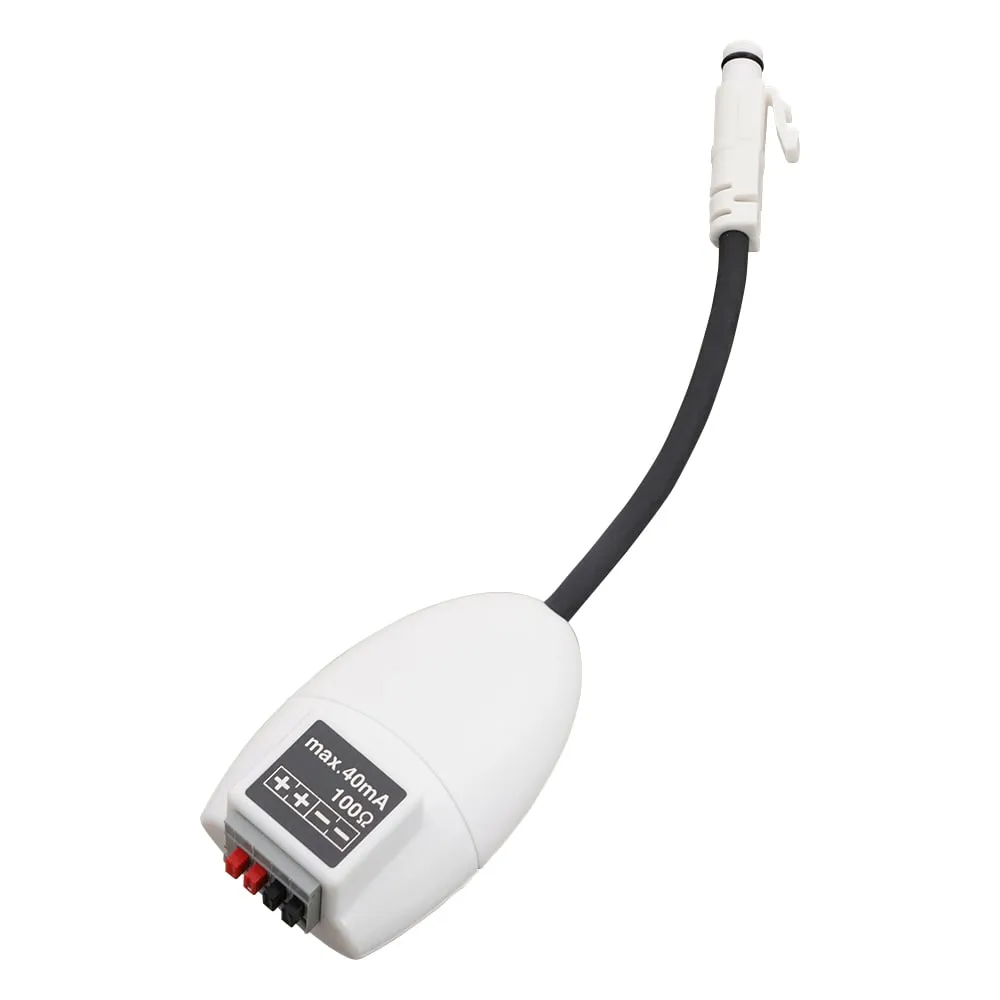

61-8494-12 4-20ma Module AIM-3010
Product Description
Product Model: 61-8494-12Product Brand: T&D Corpora […]
Contact Us
Product Details
Product Model: 61-8494-12
Product Brand: T&D Corporation
Spec
- Adaptive model: TR-55i-mA,RTR-505-mA,RTR-505-mAL
- Measurement target: 4-20mA
- Input current range: 0 - 20mA (operation available up to 40mA)
- Measurement resolution: 0.01mA
- Measurement accuracy: Module temperature
- -40 - 10℃: : ±0.1mA + 0.3% of read value
- -10 - 40℃ : ±0.05mA + 0.3% of read value
- -40 - 80℃ : ±0.1mA + 0.3% of read value
- Input resistance: 100Ω ±0.3Ω
- Sensor connection: Electric cable insertion type plus (+) 2 terminals in parallel, minus (-) 2 terminals in parallel, total 4 terminals
- Applicable wire: Single line/φ0.32 - φ0.65mm (AWG28 - AWG22), Recomm***ed φ0.65mm (AWG22), Twisted wire/0.32mm2 (AWG22), Element wire diameter φ0.12mm or more
- Stripping length: 9-10mm
- Operating environment/-40℃ - 80℃, Humidity 90% or less (no condensation)
