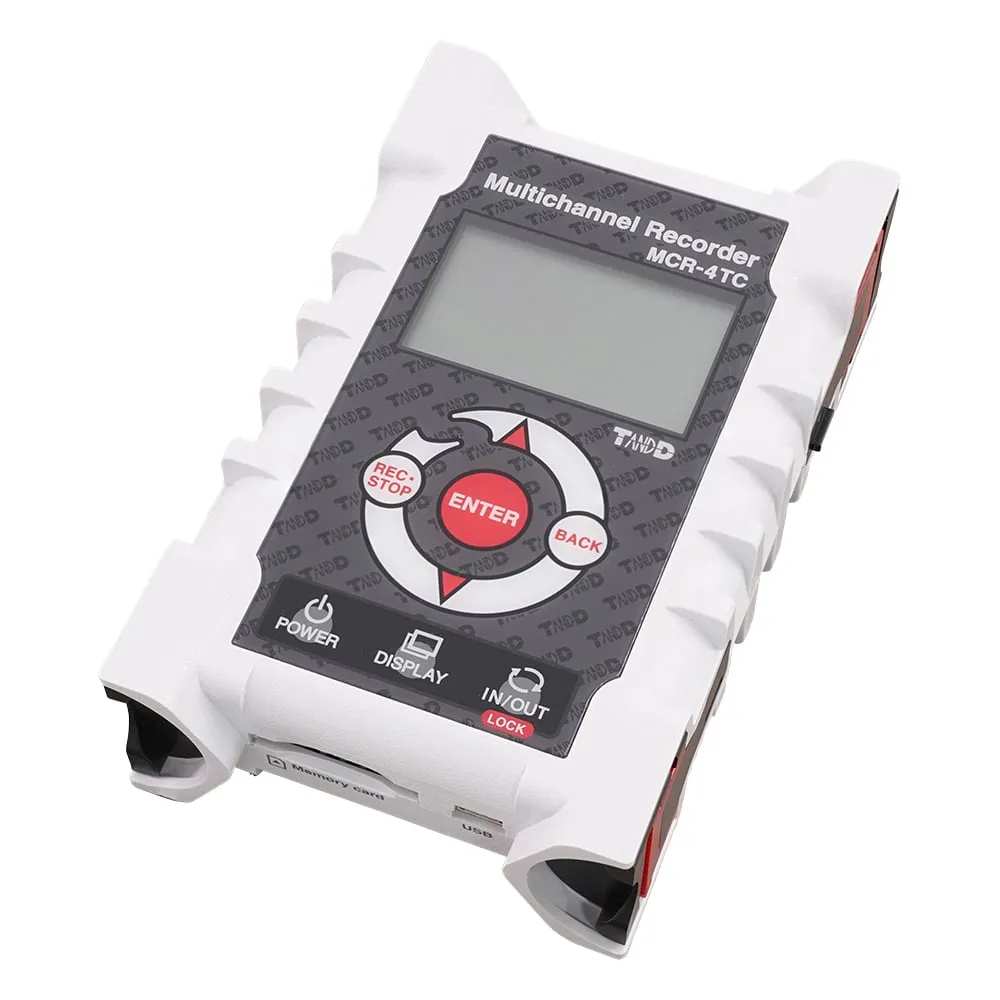

61-8493-90 Thermocouple 4ch Temperature Data Logger MCR-4TC
Product Description
Product Model: 61-8493-90Product Brand: T&D Corpora […]
Contact Us
Product Details
Product Model: 61-8493-90
Product Brand: T&D Corporation
Features
- A data logger that measures and records four channels on one device.
- The main unit can be connected to up to 4 units and can measure synchronously up to 16 channels.
- The multi-channel data logger achieves revolutionary battery power.
- It records at a minimum of 2msec with a minimum resolution of 10 muV for high-speed and precise measurement.
- Measure and record temperature (Compatible with K, J, T, S and R thermocouple sensors).
- In addition to direct USB communication, recorded data can be transferred to a PC via an SD card.
- Graphs can also be displayed and viewed on the recorder's LCD.
Spec
- Measurement target: Temperature 4ch
- Thermocouple: K, J, T, S, R
- Measurement range: -270 - 1760℃
- Accuracy: ±0.5℃ ±0.3% of read value (K, J, T type), ±1.5℃ ±0.3% of read value (S, R type)
- Display: Measured value, Battery remaining amount, Other
- Recording data: 960000
- Recording interval: 100msec - 60 minutes
- Recording mode: ***less/onetime
- Communication: USB
- Power supply: AA alkaline x 2, AC adapter
- Main unit operation environment: Temperature/0 - 50℃, Humidity/90%RH or less (no condensation)
- Size: H120mm x W75mm x D32mm
- Waterproof: No
- Battery life: Approx 4.5 - 120 days
- Accessories: USB communication cable, Software, Other
