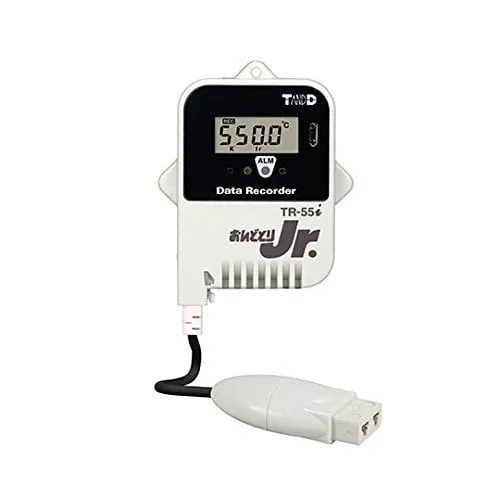

61-8493-85 Temperature Recorder (Thermocouple Type) TR-55i-TC
Product Description
Product Model: 61-8493-85Product Brand: T&D Corpora […]
Contact Us
Product Details
Product Model: 61-8493-85
Product Brand: T&D Corporation
Features
- Thermocouple Compatible Small Data Loggers The TR-5i series data loggers measure and record temperature, voltage, 4-20 mA, and pulse number.
- The logger body is waterproof and can be ***d in various environments of -199~1760°C.
- It is battery-powered and can be installed anywhere.
- Recorded data can be transferred to a personal computer via the optional communication port TR-50U2 or the data collector TR-57DCi for graph display and data analysis.
- Data collectors also enable on-site data collection and browsing without the need to collect data loggers.
Spec
- Measurement target: Temperature 1ch (thermocouple sensor sold separately)
- Measurement range: -40 - 80℃
- Accuracy: +/- 0.5℃
- Display: Measured value, Battery remaining amount, Other
- Recording data: 16000
- Recording interval: 15 ways:
- Recording mode: ***less/onetime
- Communication: Optical communication, Infrared communication
- How to check the Alarm: Body liquid crystal screen, Body LED
- Power supply: Lithium battery
- Main unit operation environment: Temperature/-40 - 80℃
- Size: H62mm x W47mm x D19mm
- Waterproof: IP67
- Battery life: Approximately 4 years
- Accessories: Cell
