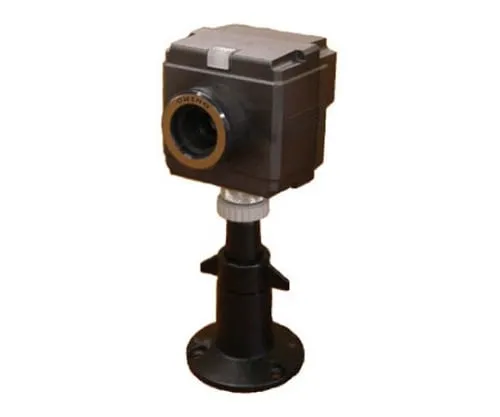

61-8478-06 Small Thermal Image Sensor TPL0225EN
Product Description
Product Model: 61-8478-06Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 61-8478-06
Product Brand: CHINO CORPORATION
Features
- An FPA element of approximately 2000 pixels has been adopted to achieve an affordable price.
- Small and lightweight design.
- In addition to thermal image monitoring by PC, the sensor body is equipped with an alarm contact output.
- When an alarm is output, one image can be held in the sensor body.
- Has a dust-proof drip-proof structure IP65 with excellent environmental resistance.
- Monitoring abnormal heat generation of equipment.
- Monitoring abnormal heat generation on the production line.
- Monitoring heat generation and ignition of stored items.
- Product temperature inspection in the inspection process. (Temperature distribution, hot spot and cool spot management)
Spec
- Measuring temperature range (deg. C): -20~300
- Measuring viewing angle (°): 25 x 25
- Spatial resolution (mrad): 21.8
- Operating temperature range (°C): -10~50
- External Dimensions (mm): H72 x W62 x D59
- Measuring temperature range (deg. C): -20~300
- Measuring viewing angle (°): 25 x 25
- Spatial resolution (mrad): 21.8
- Operating temperature range (°C): -10~50
- Temperature Resolution (°C): 0.5
- Image Size (Pixels): 48×47
- Frame Time (Hz): 3
- Interface: 10BASE-T/100BASE-TX
- Power (V DC): 12~24
- Mass (g): 150
- Waterproof performance IP65 (when using dedicated cable and fixing screw)
- Material and Finish: Polycarbonate Resin (Black)
- Set Contents and Accessories: Thermal Image Sensor Body, 1 Fixing Screw, 1 Lens Cap, 1 Cloud Stand, 3 Mounting Screws for Cloud Stand, 3 Curl Plugs for Mounting Cloud Stand Concrete, 1 Connector Cap, Dedicated LAN Cable 2.5 m/1, Dedicated Power/Alarm Output Cable 2.5 m/1, 1 Application Software, 1 Quick Manual
- Securities Code: 722-0341
- There is a separate delivery fee for Okinawa and remote islands.
