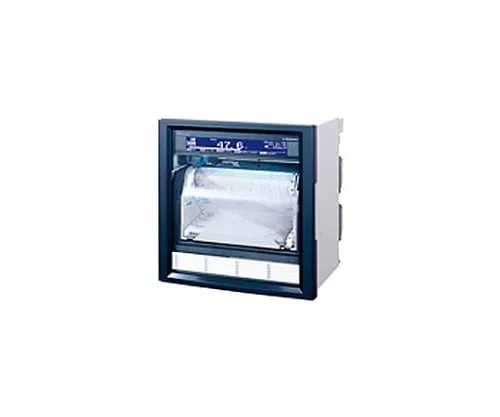

61-8181-46 Ah4000 Series Acting Hybrid Memory Recorder AH4706N0ANNN
Product Description
Product Model: 61-8181-46Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 61-8181-46
Product Brand: CHINO CORPORATION
Features
- SD card is supported.
- Full multi-range.
- Easy data management with communication function.
- Packaged software is included.
- Alarm display and printing functions are provided as standard.
- With chart *** detection function.
- It has a variety of calculation functions.
- Recording and alarm monitoring of various process quantities.
- Food and beverage, pulp and paper, chemicals, iron/non-ferrous metals, industrial machinery, food machinery, industrial electrical equipment, electronic components and semiconductors, testing, analysis and measurement, contract manufacturing and processing, and other manufacturing.
Spec
- Case Color: Door Frame Black (equivalent to Munsell N 3.0), Front Plate Colorless and Transparent, Case Gray
- Mass (kg): 7.6
- Rated supply voltage: 100-240 VAC, 50/60Hz
- Power consumption: 65VA max, 100 VAC 22VA at equilibrium, 240 VAC 31VA
- Normal operating conditions: Ambient temperature 0~50°C (20~65%), Ambient humidity 20~80%RH (5~40°C), Power supply voltage 90~264 V AC, Power supply frequency 50/60Hz±2%, Mounting posture 0° forward, 0~30° backward, 0~10° left and right
- Terminal Screws: Power Terminal, Protective Conductor Terminal M4.0, Measurement Input Terminal, Alarm Terminal, External Drive Terminal M3.5, Communication Terminal M3.0
- Mounting method: panel embedded mounting
- Material and Finish: Aluminum Die-cast Door, Front Plate Glass, Case Plain Steel Plate
- Securities Code: 721-9849
- There is a separate delivery fee for Okinawa and remote islands.
