Electronic/Electrical Parts and Controll Equipments

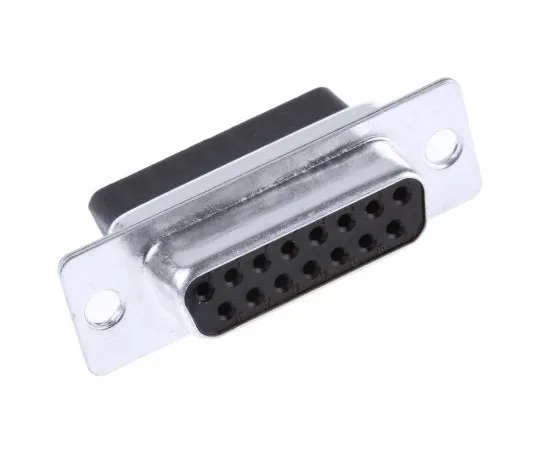

63-4632-35 RS PRO 15 Way Cable Mount D-sub Connector Socket 481-106
Product Description
Product Model: 63-4632-35Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4632-35
Product Brand: RS PRO
Features
- The Through Harness dimension allows connectors and wiring assemblies (D connector with Speed-bloc (TM) ribbon cable, IDC type or other version) to pass through openings in the panel.
- Crimp Shell (Ground)
- Refer to D Connector Cutter (Example: Part Number 477-8690) for appropriate drilling tools
- Rear Entry Release Crimp Contact Tin Plated Plug/Shell for superior shield conductivity Ratchet type tools available separately
Spec
- Number of Contacts:15
- G***er:Female
- Body Orientation:Straight
- Mounting Type:Cable Mount
- Termination Method:Crimp
- Current Rating:5.0A
- Housing Material:Steel
- Voltage Rating:470.0 V
- Length:39.14mm
- Width:12.55mm
- Dimensions:39.14 x 12.55mm
- Maximum Operating Temperature:+125°C
- CODE No.:481-106
