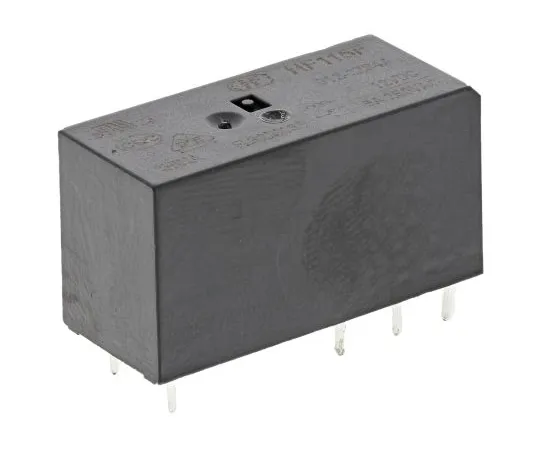

63-4631-97 RS PRO, 12V dc Coil Non-Latching Relay DPDT, 8A Switching Current PCB Mount, 2 Pole 476-753
Product Description
Product Model: 63-4631-97Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4631-97
Product Brand: RS PRO
Features
- IEC60335-1
- UL (File No. E134517), VDE (File No. 116934), CQC (File No. CQC 02001001951)
- Low Profile Relay
- Low Profile, Maximum Height: 15.7 mm 5 mm Pinning for 8 A and 16 A Types, 3.5 mm Pinning for 12 A Type Insulation Capacity: 5 kV (Coil to Contact) Maximum Surge Voltage: 10 kV (Coil to Contact) Anti-wash Creepage: 10 mm VDE0435/0631/0700 Compliant
Spec
- Coil Voltage:12V dc
- Coil Power:400mW
- Coil Resistance:360 Ω
- Isolation Coil To Contact:5kV ac
- Contact Configuration:DPDT
- Mounting Type:PCB Mount
- Switching Current:8A
- Terminal Type:Through Hole
- Number of Poles:2
- Maximum Switching Voltage AC:440V ac
- Maximum Switching Voltage DC:300V dc
- Height:15.7mm
- CODE No.:476-753
