Spec

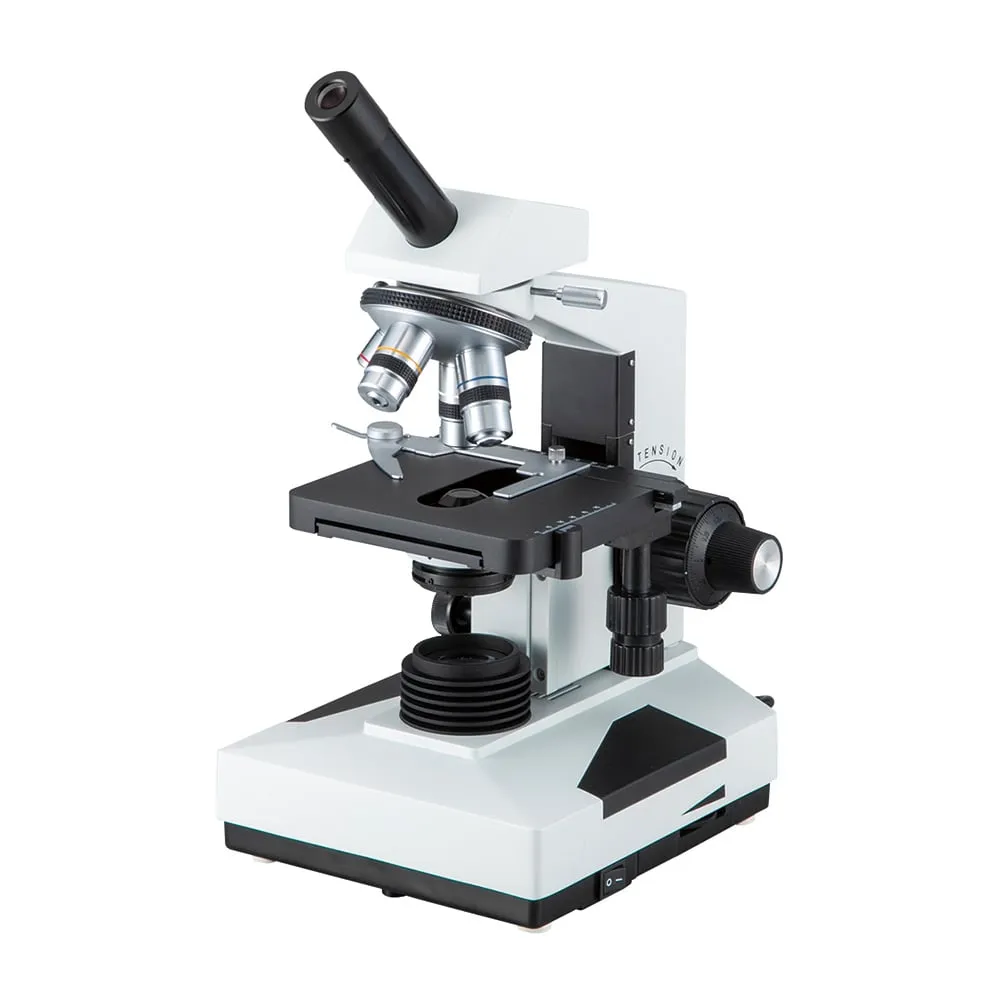

• Specifications: Monocular
• Overall magnification: 40~1000 x
• Eyepiece: WF10 x (Field of View 18)
• Lens barrel type: tilt angle 30°
• Focus Adjustment: Uniaxial Coarse Fine Motion System (With Stationary and Tension Adjustment), Stroke/2 μm (Front and Back)
• Stage: 124 x 140 mm (50 mm longitudinal movement x 75 mm lateral movement)
• Lighting: 20 W Halogen Light (Light Intensity Adjustable)
• Capacitor: Abbe N.A. 1.25 with Iris Aperture/Filter Holder
• Power: 100 VAC 50/60Hz
• Power Cord Length: Approx. 1.7 m (3P Plug)
• Size: Approx. 187 x 231 x 385 mm
• Weight: Approx. 4.8 kg
• Accessories: Filter (Blue/Yellow/Green), Oil Immersion Oil (5mL), Dust Cover, Replacement Halogen Lamp
• *When using S100, immersion oil is required (about 5 mL of immersion oil is included).
