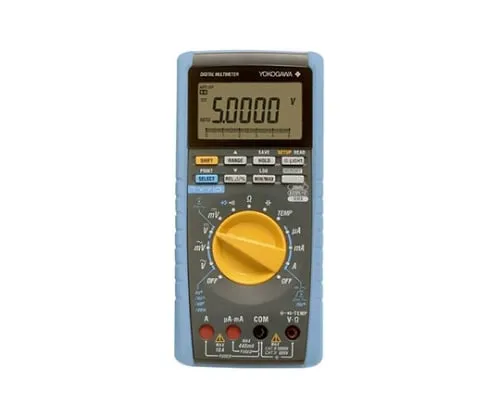

61-7362-77 Digital Multimeter TY710
Product Description
Product Model: 61-7362-77Product Brand: Yokogawa Electr […]
Contact Us
Product Details
Product Model: 61-7362-77
Product Brand: Yokogawa Electric Corporation
Features
- Basic accuracy: 0.020%
- True effective value measurement
- Simultaneous DC and AC measurement display
- Large memory for logging
- Compliance with EN61010-1 safety standard: 1000 V CAT.III, 600 V CAT.IV
- Current shutter for preventing erroneous insertion
- Operating temperature range (-20 to +55°C)
- Storage temperature range (-40 to +70°C)
- User calibration function
Spec
- DC voltage measurement (DCV): 50.000mV/500.00mV/2400.0mV/5.0000V/50.000V/500.00V/1000.0V
- AC voltage measurement (ACV: RMS): 50.000mV/500.00mV/5.0000V/50.000V/500.00V/1000.0V
- AC voltage measurement (ACV: MEAN): 50.000mV/500.00mV/5.0000V/50.000V/500.00V/1000.0V
- Both DC and AC voltage (DCV + ACV): 5.000V/50.00V/500.0V/1000V
- DC current measurement (DCA): 500.00μA/5000.0μA/50.000mA/500.00mA/5.0000A/10.000A
- AC current measurement (ACA: RMS): 500.00μA/5000.0μA/50.000mA/500.00mA/5.0000A/10.000A
- AC current measurement (ACA: MEAN): 500.00μA/5000.0μA/50.000mA/500.00mA/5.0000A/10.000A
- Both DC and AC current (DCA + ACA): 500.00μA/5000.0μA/50.000mA/500.00mA/5.000A/10.000A
- Resistance measurement: 500.00Ω/5.0000kΩ/50.000kΩ/500.00kΩ/5.0000MΩ/50.000MΩ
- Low-power resistance measurement (LP-Ω): 5.000kΩ/50.00kΩ/500.0kΩ/5.000MΩ
- Continuity check: 500.0Ω
- Diode test: 2.4000 V
-
Temperature measurement: -200 to 1372℃.
- Outer dimensions: Approximately 90mm (W) x 192mm (H) x 49mm (D)
- Weight: Approximately 560g (including cell)
- Accessories: Dry cell (4 pieces), Test lead 1 pair, F*** (body housing) 440mA/1000V and 10A/1000V, Instruction manual (1 volume)
