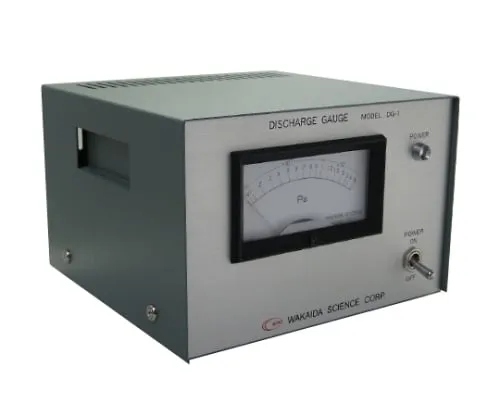

61-6074-61 Penning Vacuum Gauge DG-1
Product Description
Product Model: 61-6074-61Product Brand: WAKAIDA SCIENCE […]
Contact Us
Product Details
Product Model: 61-6074-61
Product Brand: WAKAIDA SCIENCE CORP.
Features
- Since it is a cold cathode discharge, there is no burning of the filament, its structure is simple and robust, and it does not ca*** a failure even when the switch is turned on at one atmospheric pressure.
- The measuring sphere ***s a special alloy for the magnet, is lightweight, miniaturized, and easy to handle.
- Since there is no burning of the measuring ball filament, it can be easily ***d as a pressure indicator.
- Application: Since it is easy to handle and robust, it can easily be ***d in a wide range of industrial instruments such as vacuum equipment.
Spec
- Measurement range: 8 x 10^-1 - 1 x 10^-3Pa
- Measurement range: 1 stage
- Measurement sphere: D-31M with magnet
- Measurement code: Standard 2m
- Recorder output: Full scale 10mV
- Shape: Table top type
- Dimensions (W x H x D): 185 x 120 x 185
- Weight: 2.9kg
- Power supply: 100VAC 50/60Hz
- Power consumption: 9W
