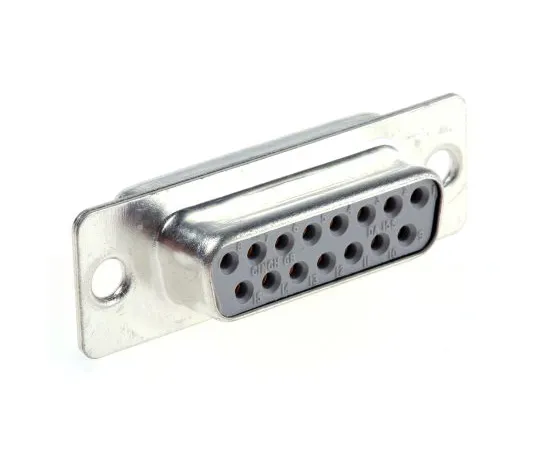

63-4631-45 RS PRO 15 Way Panel Mount D-sub Connector Socket, 2.74mm Pitch 473-919
Product Description
Product Model: 63-4631-45Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4631-45
Product Brand: RS PRO
Features
- "Harness through" dimensions are those that allow connectors and wire assemblies to pass through openings in the panel. (D connector terminated with a Speed-bloc (TM) ribbon cable, IDC type, or other version) Solder Cup with Grounding
- Machining Contacts Fully RFI/EMI Shielding Guaranteed When Used as Defense Against RFI/EMI Tin Plated Steel Shell with Fingers for Grounding
- Panel Mounting
- Refer to D Connector Cutter for appropriate drilling tools (Example: Part Number < 477-8690') 477-8690
- (* Standard Mounting Dimensions)
Spec
- Number of Contacts:15
- G***er:Female
- Body Orientation:Straight
- Mounting Type:Panel Mount
- Pitch:2.74mm
- D Connector Type:Standard D-Sub
- Termination Method:Solder
- Current Rating:5.0A
- Housing Material:Steel
- Voltage Rating:750.0 V
- Length:39.14mm
- Width:12.55mm
- Depth:14.85mm
- Dimensions:39.14 x 12.55 x 14.85mm
- Maximum Operating Temperature:+125°C
- CODE No.:473-919
