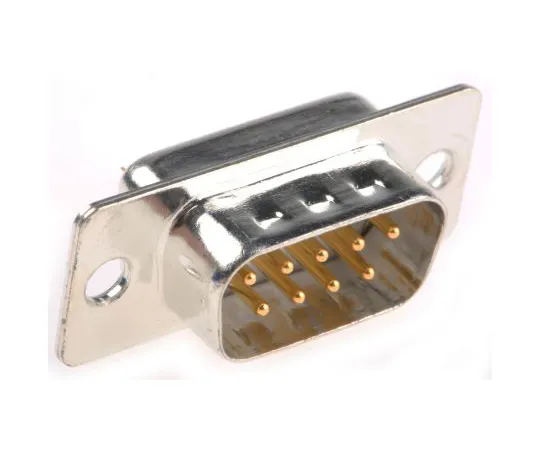

63-4631-43 RS PRO 9 Way Panel Mount D-sub Connector Plug, 2.74mm Pitch 473-880
Product Description
Product Model: 63-4631-43Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4631-43
Product Brand: RS PRO
Features
- "Harness through" dimensions are those that allow connectors and wire assemblies to pass through openings in the panel. (D connector terminated with a Speed-bloc (TM) ribbon cable, IDC type, or other version) Solder Cup with Grounding
- Machining Contacts Fully RFI/EMI Shielding Guaranteed When Used as Defense Against RFI/EMI Tin Plated Steel Shell with Fingers for Grounding
- Panel Mounting
- Refer to D Connector Cutter for appropriate drilling tools (Example: Part Number < 477-8690') 477-8690
- (* Standard Mounting Dimensions)
Spec
- Number of Contacts:9
- G***er:Male
- Body Orientation:Straight
- Mounting Type:Panel Mount
- Pitch:2.74mm
- D Connector Type:Standard D-Sub
- Termination Method:Solder
- Current Rating:5.0A
- Housing Material:Steel
- Voltage Rating:750.0 V
- Length:30.81mm
- Width:12.55mm
- Depth:14.67mm
- Dimensions:30.81 x 12.55 x 14.67mm
- Maximum Operating Temperature:+125°C
- CODE No.:473-880
