Analyzer, Testing Equipment

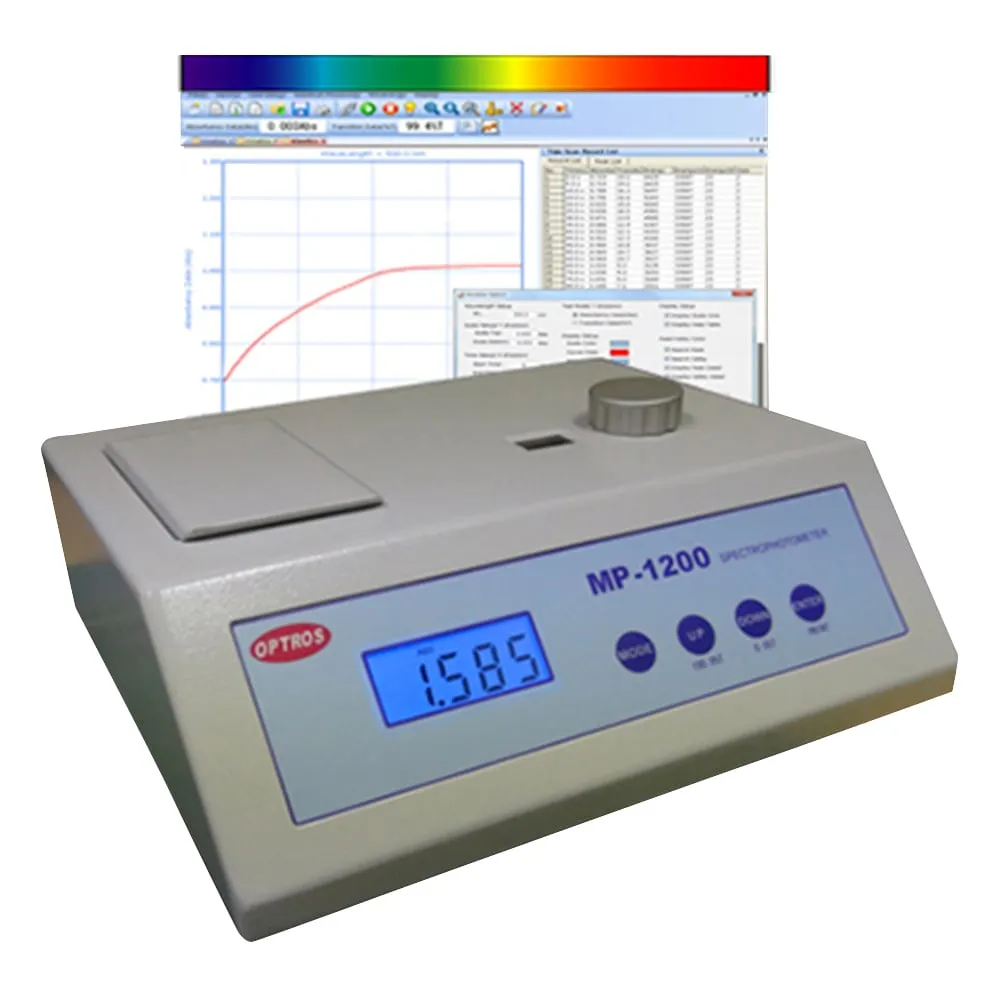

63-1267-54 Smart spectrophotometer MP-1200
Product Description
Product Model: 63-1267-54Product Brand: SEIKOHSYA Featu […]
Contact Us
Product Details
Product Model: 63-1267-54
Product Brand: SEIKOHSYA
Features
- Standard square cells and normal test tubes (outer diameter Φ12/16.5~18 mm) can be ***d for the measurement.
- Easy-to-read large LCD backlight display
- Optional software can be connected to a PC to accurately measure sample concentration without linearity.
- Density calibration curve, measurement data can be saved and edited.
- The measurement items are absorbance ABS, transmittance% T, concentration CONC factor value input, as well as real-time graphing by control Kynetech measurement from the PC side, and each measurement value can be displayed, saved, and edited.
- When determining the concentration value, the calibration curve curve is selected from three types: Piecewise line, Linear temporary regression (C=a+bA), and Quadratic quadratic regression (C=a+bA+cA2).
- Since the calibration curve can be memorized, you can recall the item you want to measure from the next time and immediately measure, display, save, and edit the sample density value.
- Each saved data can be converted to text or Excel format for editing and saving.
Spec
- Wavelength setting range: 340 to 1000 nm
- Wavelength accuracy: ± 2 nm
- Wavelength reproducibility: ≤ 1.0 nm
- Wavelength width: 6 nm
- Photometric Accuracy: ± 2T%
- Diffraction grating: 1200/mm
- Transmission repeatability: ≤ 0.5 T%
- Stray light: ≤ 1.0 T%
- Detector: High sensitivity silicon photocell
- Light source: High-intensity halogen lamp (6 V, 10 W)
- Spectroscope: Greeting (1200 Pieces/mm)
- measurement range : Absorbance/-0.301 to + 3.000 , Transmittance/0.0 to 200.0 T % , Concentration/0.000 to 2000 C (Calibration Curve 3 Type Selection) (mg/dl, mg/l, g/l, ppm, M)
- Available Test Tube Dimensions
- Diameter φ 16.5 to 18 mm x Length 55 to 160 mm
- * When using the attached common adapter
- Square Cell Width 10 mm x Depth 10 mm x Length 45 to 150 mm
- Test Tube Diameter φ 12 x Length 55 to 150 mm
- View: 65 x 26 mm 4 1/2 LCD
- power supply : AC100 to 220 V 50 to 60Hz (± 10%)
- Power: 25 W
- F***: 1 A
- Interface: PC-USB
- Dimensions : L 320 x W 290 x H 120 mm
- Weight: 4.2 kg
- Accessories: Instruction Manual, power cord, dust-proof Cover Light Shielding Cap, Glass Square Cell x 2, F*** 1A
- Item code: 32 -5000
