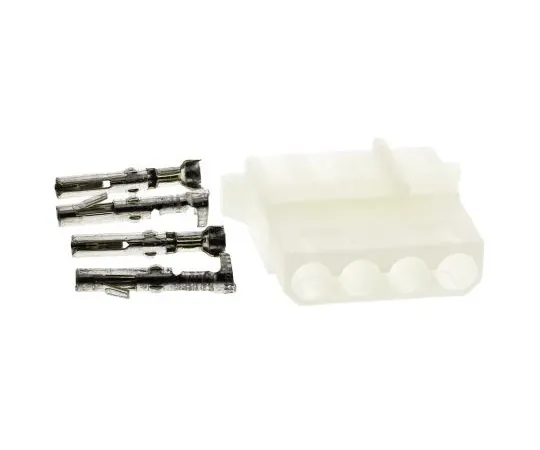

63-4630-92 Connector housing scalpel 4 poles 1 row 5.08 mm Maiten lock 14804241633042
model:
63-4630-92
brand:
TE Connectivity
Product Description
Product Model: 63-4630-92Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4630-92
Product Brand: TE Connectivity
Features
- For the most suitable crimping tool, refer to part number < 468-686') 468-686/
- Disk drive connector
- Compatible with 0.5 mm2~1.05 mm2 wires Rated 15 A (maximum at 125°C), up to 250 Vac/dc
- Board mounting
- Straight plug, with solder contacts
- In-line socket
- Housing, with crimping socket contacts
- In-line plug
- Housing, with crimping pin contacts
Spec
- Quantity: 1 bag (5 pieces)
- Number of contacts: 4
- Number of lines: 1
- Pitch: 5.08 mm
- G***er: Female
- Installation type: through hole
- Series: CommercialmATE-N-LOK
- Compatible products: MATE-N-LOK, socket
- Body orientation: straight
- Length: 26.39 mm
- Width: 7.87 mm
- Depth: 21.6 mm
- Housing Material: Nylon
- RoHS compliance status: Compliance
- Securities Code: 471 -424
