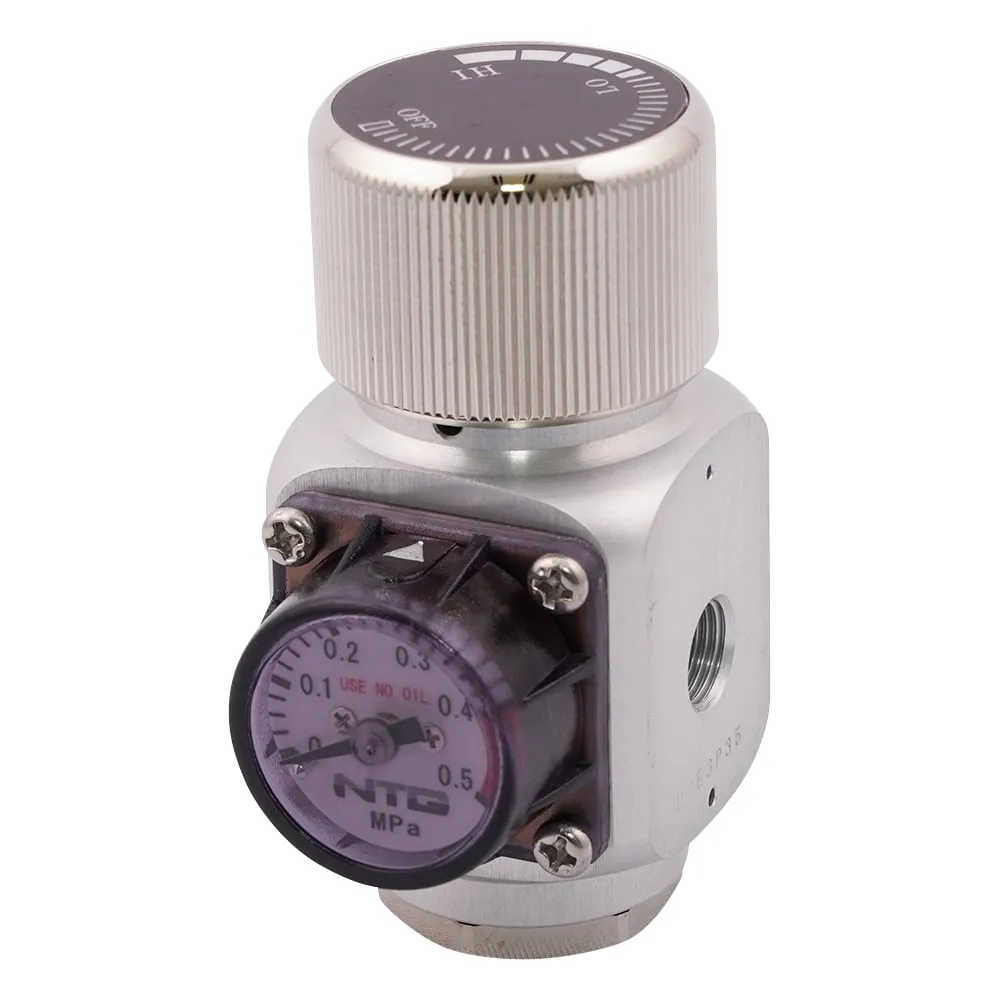

2-113-02 Pressure Reducing Valve for Portable High Pressure Gas Cylinder NR-24-2
model:
2-113-02
category:
dissectiontoolsandsupplies
Product Description
Product Model: 2-113-02 Features Provided with palm-siz […]
Contact Us
Product Details
Product Model: 2-113-02
Features
- Provided with palm-sized small container to fill high-pressure gas.
- Suitable for small amount of gas displacement test and *** in place where piping does not reach out or high-pressure gas tank can not carried in.
Spec
- Connection shape: Outlet side/Rp1/8 female screw, Cartridge connection side/5/8-18UNF female screw
- Operating temperature (decompression valve): 0 - 40℃
- Size: Decompression valve/About 35 x 32 x 80mm, Cartridge/(CO2, He) about φ40 x 134mm, (N2) About φ40 x 130mm
- Filling gas amount (cartridge): CO2/40L (74g), He/15L (2.5g), N2/15.9L (18.5g)
- Table mounting width (when metal fitting for fixing is in ***): Maximum 55mm
- Pressure setting range (MPa): 0.05 - 0.35
- Pressure display meter (MPa): 0 - 0.5
- *Cartridge cylinder doesn't come with decompression valve. Please purchase cartridge cylinder.
- Model number: Decompression valve NR-24-2
