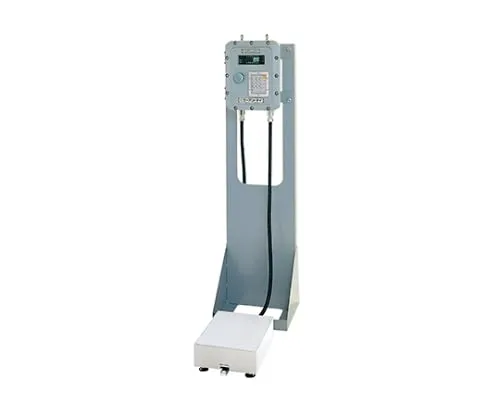

61-4678-03 Pressure Explosion-Proof Structure Explosion-Proof Weighing System with Test ST30K05-FP-K
Product Description
Product Model: 61-4678-03Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4678-03
Product Brand: A&D
Features
- Accuracy Grade 3 for Transaction Certification (Verified Products)
- Pressure Resistant Explosion-Proof Structure For Measuring Hazardous Areas (Type 1 and Type 2)
- ExdIIBT5X (Display Part)/ExdIIBT4 (Measurement Base Part)
- Labor Inspection Number (Display Part): C13526, Labor Inspection Number (Measurement Base Part) TC13378
- Automatic Accumulation Function Increases Work and Management Efficiency
- Nozzle Lifting Control Function to Eliminate Nozzle Lifting Trouble During Filling
- Automatic Refilling in Case of Lack Using Supplementary Input Function
- Plenty of Control Signals (Control I/O) for Controlling Peripheral Devices
- Standard Electromagnetic Buzzer for Checking Various Conditions
- Comparative Value, Tare Bag Value, 100 types of cumulative value can be registered for each code
- High speed sampling of 100 times per second
- High precision filling and cutting control
- Variety of measurements for mixing, cutting and weight check of raw materials
- Specify the area to *** when ordering.
Spec
- Weighing capacity: 30kg
- Scale interval: 0.01kg
- Usage range: 0.2kg - 30kg
- Display: 7 segments fluorescent display (cobalt blue) Characters height of 13mm
- Weighing table: Plate dimensions 290 (W) x 375 (D) mm, Mass: Approximately 13kg/measurement table material: Weighing tray stainless steel (SUS430), Base iron (SS400)
- Power supply: AC power (power cable not included)
- Accessories: Instruction manual, L type haxagonal wrench, L type Long haxagonal wrench, M10 nut plate spanner, Cable protective tube adapter (already installed in a weighing table), Flexible tube (already installed in a weighing table)
- Measuring method: Electric Resistance wire type (Load cell type)
- Accuracy grade: Third grade
- Use area: Please specify the *** area at the time of your order.
Note
- Applicable regulations and others: Measurement Act
