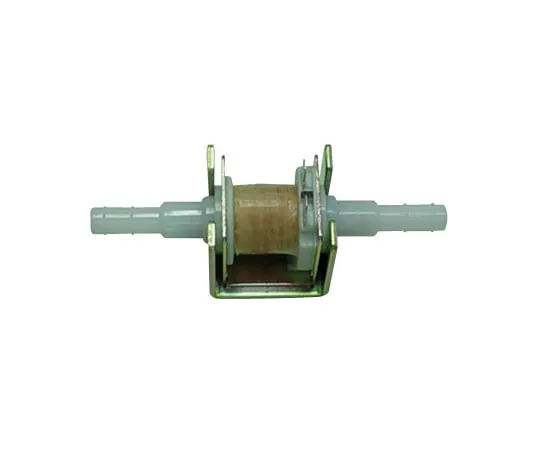

6-9214-01 Electromagnetic Pump LP6W
model:
6-9214-01
category:
laboratoryinstruments
Product Description
Product Model: 6-9214-01 Features An AC power supply is […]
Contact Us
Product Details
Product Model: 6-9214-01
Features
- An AC power supply is applied to the coil by half-wave rectification with a rectifier element (diode), and intermittent magnetic force is generated to move the plunger up and down.
Spec
- Model number: LP6W
- Voltage in ***: 100VAC 50/60Hz
- Power consumption: 7/7W
- Liquid ***d: Water, alcohol
- Standard inhalation head: 0.3mH2O
- Size: φ35 x 104mm
- Connection port: Suction port/bamboo shoot φ8 - 9mm, Discharge port/bamboo shoot φ8 - 9 mm
- Maximum flow rate: 60L/h (0MPa)
- Highest pressure: 0.06MPa (0.6kgf/cm2)
