Features

• For corresponding crimping tools, see part number < 740-6666') 740-6666/and die set < 740-6663') 740-6663/

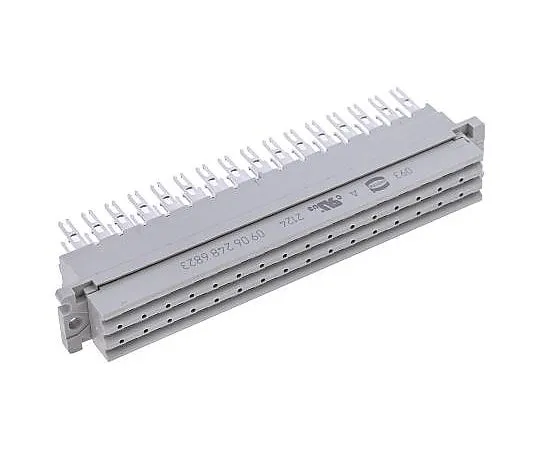

• Harting DIN41612 Type F Backplane Power Connector
• The highly durable DIN41612 Type F Backplane Power Edge connector is suitable for many applications, such as rail transport and power supply, and provides reliable connections between substrates and cables.
• Robust, abrasion resistant and compatible with various termination methods.
• Part number < 757-7939') 757-7939/, < 757-7910') 757-7910/, < 757-7914') 757-7914/, < 757-7973') 757-7973/, < 757-7972') 757-7972/, < 757-7923') 757-7923/, < 757-7982') 757-7982/has been approved for railway applications under Railway Classification NFF16-101, Smoke Index F1, Flame Retardant Grade I2.
• 5.08 mm Contact Pitch Operating Temperature Range: -55→+125°C Maximum 6 A per contact Contact Resistance: 15 mΩ (Maximum) Thermoplastic-Glass Fiber Copper Alloy Contacts
