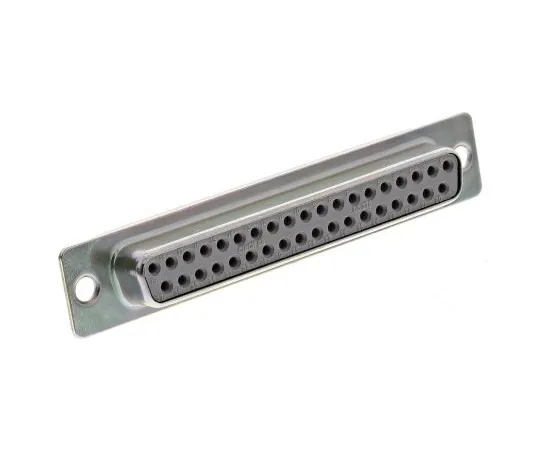

63-4630-01 RS PRO 37 Way Panel Mount D-sub Connector Socket 467-071
Product Description
Product Model: 63-4630-01Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4630-01
Product Brand: RS PRO
Features
- "Harness through" dimensions are those that allow connectors and wire assemblies to pass through openings in the panel. (D connector terminated with a Speed-bloc (TM) ribbon cable, IDC type, or other version)
- Solder Bucket
- Steel Passivated Galvanized Body
- Panel Mounting
- Refer to D Connector Cutter for appropriate drilling tools (e.g. part number < 477-8690') 477-8690
- (* Standard mounting dimensions)
Spec
- Number of Contacts:37
- G***er:Female
- Body Orientation:Straight
- Mounting Type:Panel Mount
- D Connector Type:Standard D-Sub
- Termination Method:Solder
- Current Rating:5.0A
- Housing Material:Steel
- Voltage Rating:750.0 V
- Length:69.32mm
- Depth:12.55mm
- Dimensions:69.32 x 12.55mm
- Minimum Operating Temperature:-55.0°C
- CODE No.:467-071
