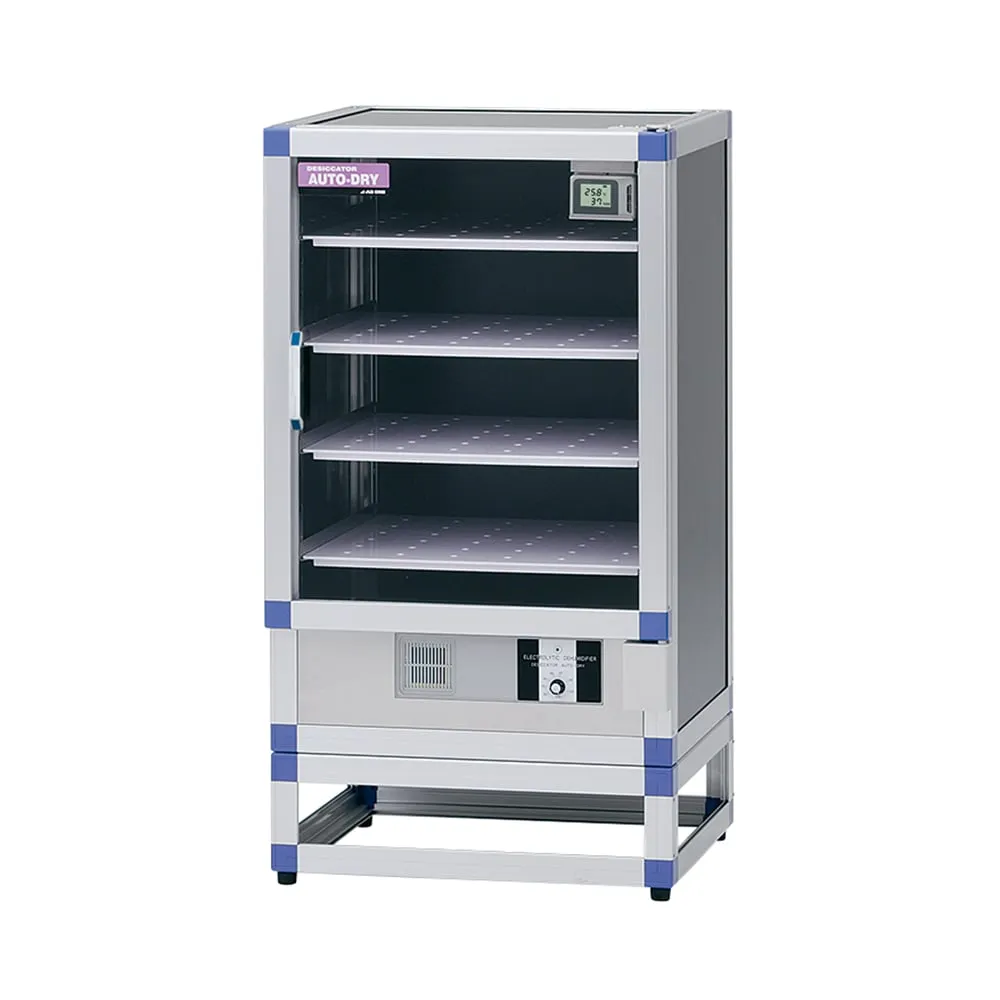

1-1613-01 Auto Dry Desiccator 574 x 524 x 1065mm Reinforced Plastic Shelf Board BGFN-SP
Product Description
Product Model: 1-1613-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-1613-01
Product Brand: AS ONE Corporation
Features
- The 5 surfaces other than the door are made of light-resistant materials, making them suitable for storing samples that dislike light.
- Standard series of lightweight aluminum frame and resin clear panel.
- The dead space in the desiccator is eliminated, and the inside of the cabinet can be ***d effectively.
- By adopting a new type of door opening/closing mechanism and eliminating dead space when opening/closing the door, it can be installed without clearance on the wall surface.
- The new dehumidification unit has no driving part and no source of sound or vibration, so it has excellent durability.
- Moisture inside the desiccator is released directly to the outside in a gaseous state, so water droplets (drains) do not appear.
- Comes with casters for easy movement.
- The humidity control is controlled (analog setting) on the front panel.
- A new type of solid polymer electrolyte membrane (Rosal) is installed on the front panel to directly electrolyse and continuously remove moisture from the interior air, enabling stable dehumidification.
Spec
- Auto Dry Type
- Humidity setting range: 20 to 50 %RH (It dep***s on environment ***d.)
- Humidity control range: 20 %RH to room humidity (In environment ***d at the time of unload)
- Humidity control system: Automatic dial adjustment (early leaving humidity)
- material (Body / Frame): PMMA (acrylic) / aluminum
- Caster specification (front wheel 2 locations stopper): None (rubber foot)
- shelf board specifications: reinforced plastic
- shelf board Dimensions / Mounted pitch: 490 x 460 mm / 50 mm
- shelf board interval : 35 mm
- shelf board Load tolerance: about 10 kg / sheet
- power supply: AC100V 50 / 60Hz
- Average Power Consumption: 4W
- Maximum Power Consumption: 27 W
- The length of power cord: about 2.5 m (3P Plug)
- Weight: 18 kg
- Accessories: shelf board x 4 pieces, high precision digital temperature humidity indicator (THI-HP)
- external dimension (mm): 574 x 524 x 1065
- inner size (mm): 560 x 483 x 864
- Reinforced plastic shelves and rubber feet
- Light shielding type
- Model Number: SP-BGFN-P
*This product might require extra fees.
