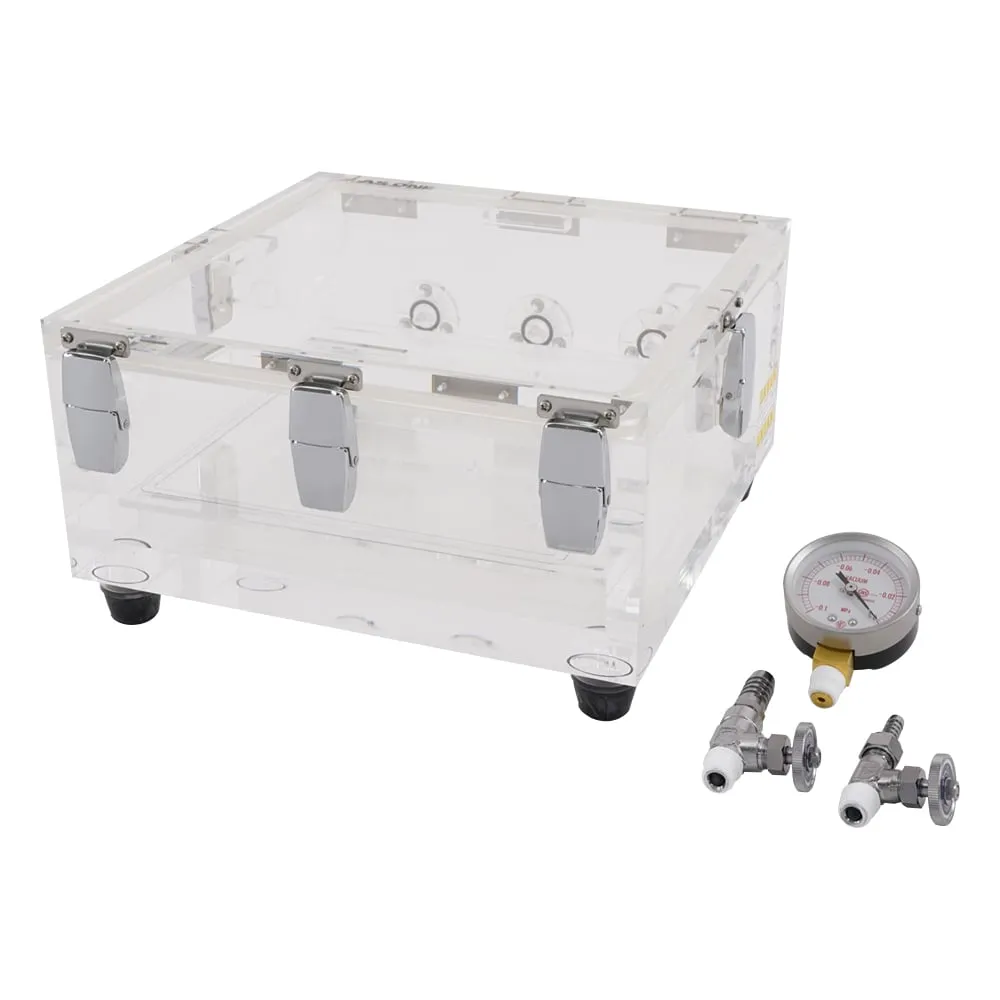

1-070-01 Vacuum Desiccator VS
Product Description
Product Model: 1-070-01Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 1-070-01
Product Brand: AS ONE Corporation
Features
- Uses highly sealable silicon packing and does not require grease.
- Compact flat size makes it suitable for storage of samples.
Spec
- Material: Main body / transparent reinforced PMMA (Acrylic Plastic) (plate thickness: 20 mm), valve vacuum mounting unit / PC (polycarbonate)
- Allowable vacuum: 1 Torr (about 133 Pa)
- Capacity: 7L
- Weight: 10 kg
- Type number: VS type
- external dimension (mm): 300 x 300 x 170
- inner size (mm): 260 x 260 x 100
- No outlet
- Accessories: vacuum gauge x 1 piece, silica gel plates x 1 piece, vacuum valves: small / outer diameter φ8 mm, large / outer diameter φ 14 mm (Each 1 piece)
- Recomm***ed vacuum pumps: (1-4148-11) Dry vacuum pumps DTC-22, (1-671-06) Dry vacuum pumps DA-20 D
