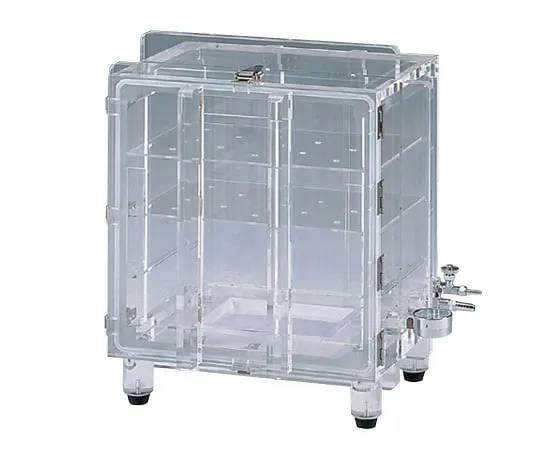

1-069-01-20 Vacuum Desiccator without Outlet with Calibration Certificate VW
Product Description
Product Model: 1-069-01-20Product Brand: AS ONE Corpora […]
Contact Us
Product Details
Product Model: 1-069-01-20
Product Brand: AS ONE Corporation
Spec
- Material: Body/Clear reinforced PMMA (acrylic) (thickness: 25 mm), Valve/Vacuum gauge attachment/PC (polycarbonate)
- Allowable vacuum: 1 Torr (about 133 Pa)
- Shelf board dimensions: 398 x 260 x 4 tmm
- Number of shelves: 3 (shelf spacing: 96 mm)
- Shelf load capacity: about 2 kg/rack (equal load)
- Capacity: 48 L
- Weight: 35 kg
- External dimensions (mm): 550 x 452 x 590
- Internal dimensions (mm): 400 x 300 x 400
- No outlet
- Accessories: Vacuum Valve: small/outer diameter, Φ8 mm, large/outer diameter, phi 14 mm (1 each), calibrated vacuum gauge x 1, PMMA (acrylic) shelf x 2, silica gel dish x 1
- Recomm***ed Vacuum Pumps: (1 -672 - 07) Oil Rotary Vacuum Pump G -50 SA, (1 -4148 - 05) Dry Vacuum Pump DTC -60, (1 -671 -11) Dry Vacuum Pump DA -60 D
*This product might require extra fees.
