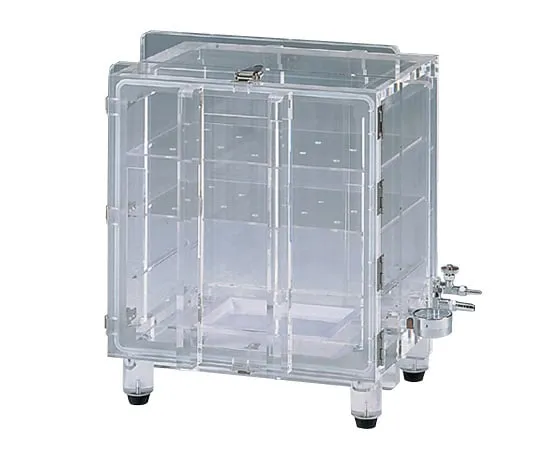

1-069-01 Vacuum Desiccator without Power Supply Outlet VW
Product Description
Product Model: 1-069-01Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 1-069-01
Product Brand: AS ONE Corporation
Features
- It comes with a vacuum gauge that lets you know the degree of vacuum at a glance. * Vacuum valve has 2 ports with outer diameters of φ8mm and φ14mm. * It ***s a highly sealed silicon packing.
Spec
- Material: Main body / transparent reinforced PMMA (acrylic) (plate thickness: 25 mm), valve vacuum gauge mounting / PC (polycarbonate)
- Allowable vacuum: 1 Torr (about 133 Pa)
- shelf board Dimensions: 398 x 260 x 4 tmm
- number of shelves: 3 stages (Shelf interval : 96 mm)
- shelf board Load tolerance: about 2 kg / stage (equal load)
- Capacity: 48 L
- Weight: 35 kg
- Model Number: VW
- external dimension (mm): 550 x 452 x 590
- inner size (mm): 400 x 300 x 400
- No outlet
- Accessories: vacuum valves: small / outer diameter φ8 mm, large / outer diameter φ 14 mm (Each 1 piece), vacuum gauge x 1 piece, shelf board × 2 pieces manufactured by PMMA (acrylic), silica gel plate × 1 piece
- Recomm***ed vacuum pumps: (1-672-07) oil rotation vacuum pumps G-50 SA, (1-4148-05) Dry vacuum pumps DTC-60, (1-671-11) Dry vacuum pumps DA-60 D
*This product might require extra fees.
