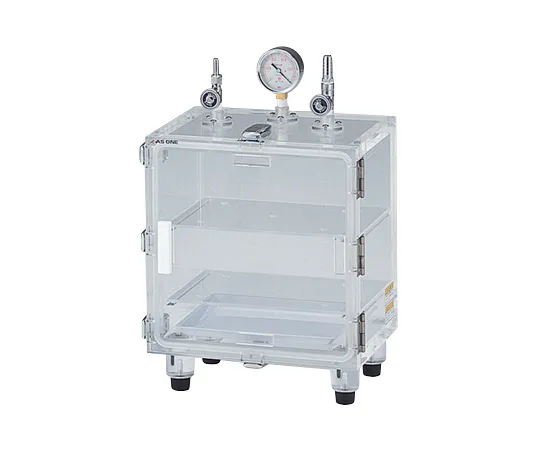

1-068-01-20 Vacuum Desiccator without Outlet with Calibration Certificate VL
Product Description
Product Model: 1-068-01-20Product Brand: AS ONE Corpora […]
Contact Us
Product Details
Product Model: 1-068-01-20
Product Brand: AS ONE Corporation
Spec
- Material: Body/Clear reinforced PMMA (acrylic) (thickness: 20 mm), Valve/Vacuum gauge attachment/PC (polycarbonate)
- Allowable vacuum: 1 Torr (about 133 Pa)
- Shelf board dimensions: 257 x 171 x 4 tmm
- Number of shelves: 2 (spacing between shelves: 100 mm)
- Shelf load capacity: about 2 kg/rack (equal load)
- Capacity: 12 L
- Weight: 11 kg
- External dimensions (mm): 300 x 222 x 360 * Including valves and meters * Excluding projections
- Internal dimensions (mm): 260 x 180 x 260
- No outlet
- Accessories: Vacuum Valve: Small/Outer diameter Φ8 mm, Large/Outer diameter phi 14 mm (1 each), Calibrated Vacuum Gauge x 1, Shelf x 2, Silica Gel Dish x 1
- Recomm***ed Vacuum Pumps: (1 -4148 -11) Dry Vacuum Pump DTC -22, (1 -671 - 06) Dry Vacuum Pump DA -20 D, (1 -672 - 07) Oil Rotating Vacuum Pump G -50 SA
