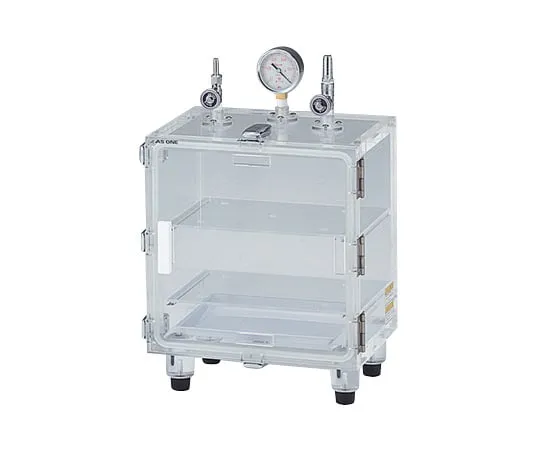

1-068-01 Vacuum Desiccator without Power Supply Outlet VL
Product Description
Product Model: 1-068-01Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 1-068-01
Product Brand: AS ONE Corporation
Features
- It comes with a vacuum gauge that lets you know the degree of vacuum at a glance. * Vacuum valve has 2 ports with outer diameters of φ8mm and φ14mm. * It ***s a highly sealed silicon packing.
Spec
- Material: Main body / transparent reinforced PMMA (acrylic) (plate thickness: 20 mm), valve vacuum gauge mounting / PC (polycarbonate)
- Allowable vacuum: 1 Torr (about 133 Pa)
- shelf board Dimensions: 257 x 171 x 4 tmm
- number of shelves: 2 stages (shelf board interval : 100 mm)
- shelf board Load tolerance: about 2 kg / stage (equal load)
- Capacity: 12 L
- Weight: 11 kg
- Model Number: VL type
- external dimension (mm): 300 x 222 x 360
- inner size (mm): 260 x 180 x 260
- No outlet
- Accessories: Vacuum Valve: Small / outer diameter φ8 mm, Large / outer diameter φ 14 mm (Each 1 piece), power cord: 3 P plug cord with OA adapter approx. 2.9 m, vacuum gauge x 1 piece, shelf board x 2 pieces, silica gel plate x 1 piece
- Recomm***ed vacuum pumps: Dry vacuum pumps DTC-22, (1-4148-11) (1-671-06) Dry vacuum pumps DA-20 D, (1-672-07) oil rotation vacuum pumps G-50 SA
- * Excluding projections.
