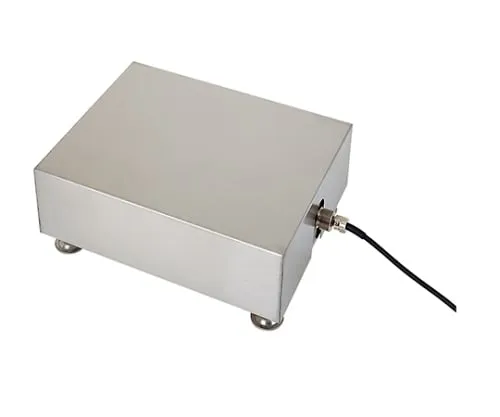

61-4677-15 Pressure Explosion-Proof Weighing Table SB-30K05FP SB30K05-FP
Product Description
Product Model: 61-4677-15Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4677-15
Product Brand: A&D
Features
- Pressure Resistant Explosion-Proof Structure Can Be Used in 1 or 2 Dangerous Places! ExdIIBT4 Labor Police Code: TC13378.
- For measuring dangerous places such as gas and steam.
- Lightweight and thin due to the *** of single point load cells.
- Stainless Steel Measuring Dish (SUS430).
- The cable ***s with a round terminal. (Length 6 m) Maximum applied voltage: 15 VDC
Spec
- Weighing capacity: 30kg
- Weighing tray dimensions: 375 (W) x 290 (D) mm
- Zero point output: 0.06 - 0.13mV/V
- Rated output: 0.3mV/V ±10%
- Nonlinearity + hysteresis error: 0.03% of R.O.
- Input terminals resistance: 418Ω ±20Ω
- Output terminals resistance: 348.5Ω ±5Ω
- Cable: φ7 x 6m, 6 core shield cable round terminal inner diameter φ3.2mm
- Standard accessories: Instruction manual:
