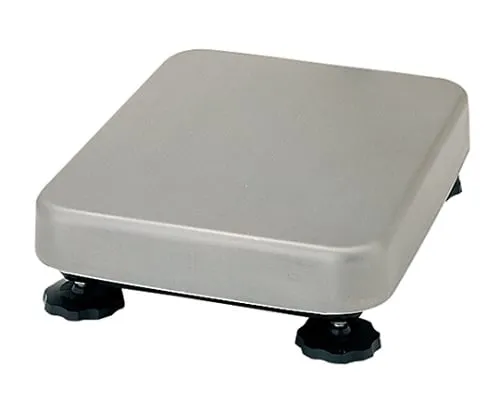

61-4677-09 Dustproof, Waterproof Weighing Table SB-15K10 SB15K10-JA
Product Description
Product Model: 61-4677-09Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4677-09
Product Brand: A&D
Features
- This measuring table can easily construct a dustproof and waterproof measuring system.
- Dustproof and waterproof IP65.
- Stainless steel measuring dish (SUS430) with no joints or screws, allowing for hygienic management.
- The combination of the waving indicators (indicator meters) makes it easy to construct a weighing system with various functions.
- The cable is a loose wire. (3 m long) Color and connection of cable core wires Red: Power supply + (input terminal) White: Power supply - (input terminal) Green: Output + Hi Blue: Output - Lo Yellow: Shield
- Maximum applied voltage: 15 VDC
Spec
- Weighing capacity: 15kg
- Weighing tray dimensions: 250 (W) x 250 (D) mm
- Zero point output: 0.20mV/V ±0.1mV/V
- Rated output: 1mV/V ±10%
- Nonlinearity + hysteresis error: 0.03% of R.O.
- Input terminals resistance: 1190Ω ±50Ω
- Output terminals resistance: 1000Ω ±10Ω
- Cable: φ4 x 3m, 4 core shield cable
- Standard accessories: Instruction manual:
