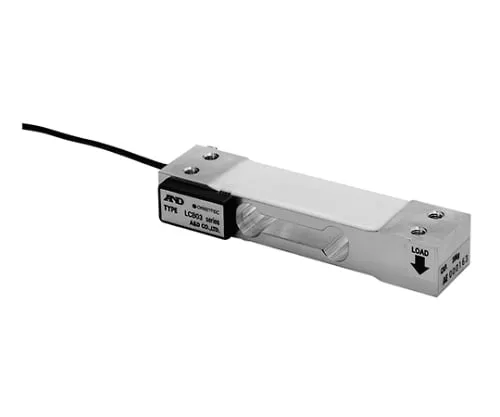

61-4676-99 Single Point Load Cell LCB03K003M
Product Description
Product Model: 61-4676-99Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4676-99
Product Brand: A&D
Features
- High-performance, moisture-proof, compact, lightweight type (4-corners adjusted).
- The system can be easily installed and the base can be easily manufactured to reduce costs.
- For both tension and compression.
Spec
- Rated capacity: 30N (3.059kg)
- Rated output: 2mV/V ±10%
- Allowable overload: 150% of R.C..
- Marginal overload: 200% of R.C..
- Total error: 0.02% of R.O..
- Recomm***ed applied voltage: DC 5 - 12V
- Maximum applied voltage: DC15V
- 0 balance: ±5% of R.O..
- Input terminals resistance: 420 ±30Ω
- Output terminals resistance: 350 ±5Ω
- Insulation resistance: 2000MΩ or more/DC50V (B/E)
- Temperature compensating range: -10℃ - 40℃
- Temperature effect of 0 points: 0.023% of R.O./10℃
- Temperature effects of output: 0.014% of Load/10℃ Typ..
- Cable thickness/length: φ3.5mm/0.4m
- Loading area size: 300 x 300mm
- Dustproof, waterproof: IP54
