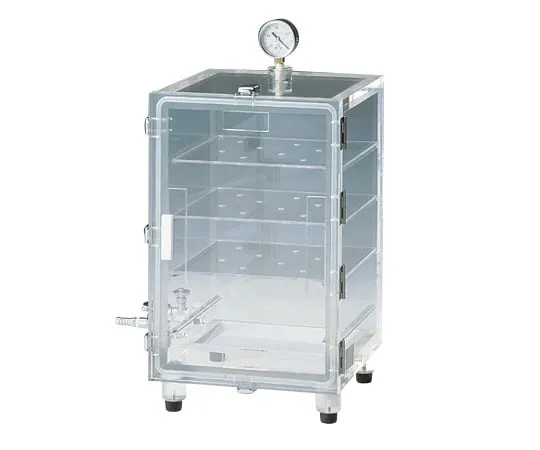

1-067-01 Vacuum Desiccator without Power Supply Outlet VLH
Product Description
Product Model: 1-067-01Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 1-067-01
Product Brand: AS ONE Corporation
Features
- It comes with a vacuum gauge that lets you know the degree of vacuum at a glance. * Vacuum valve has 2 ports with outer diameters of φ8mm and φ14mm. * It ***s a highly sealed silicon packing.
Spec
- Material: Main body / transparent reinforced PMMA (acrylic) (plate thickness: 25 mm), valve vacuum gauge mounting / PC (polycarbonate)
- Allowable vacuum: 1 Torr (about 133 Pa)
- shelf board Dimensions: 257 x 257 x 4 tmm
- number of shelves: 4 stages (Shelf interval : 85 mm)
- shelf board Load tolerance: about 2 kg / stage (equal load)
- Capacity: 30 L
- Weight: 23 kg
- Type number: VLH type
- external dimension (mm): 310 x 333 x 520
- inner size (mm): 260 x 280 x 410
- No outlet
- Accessories: Vacuum Valve: Small / outer diameter φ8 mm, Large / outer diameter φ 14 mm (Each 1 piece), power cord: 3 P plug cord with OA adapter approx. 2.9 m, vacuum gauge x 1 piece, shelf board x 2 pieces, silica gel plate x 1 piece
- Recomm***ed vacuum pumps: Dry vacuum pumps DTC-22, (1-671-06) Dry vacuum pumps DA-20 D, (1-672-07) oil rotation vacuum pumps G-50 SA (1-4148-11)
*This product might require extra fees.
