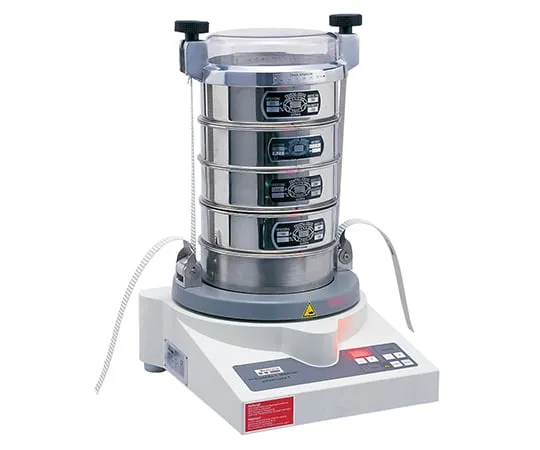

5-5600-41 Electromagnetic sieve shaker AC100 to 120 V spartan
Product Description
Product Model: 5-5600-41Product Brand: Fritsch Features […]
Contact Us
Product Details
Product Model: 5-5600-41
Product Brand: Fritsch
Features
- Apply vertical vibration to the diaphragm with an electromagnet, and swing the sieve up to 3 mm.
- Continuous operation and timer operation are possible.
- The head cover is made of Plexiglas (acrylic resin) so you can see how it is vibrating.
Spec
- Size: 370 x 400 x 200 mm/21 kg
- Range (Dep***s on the sample)
- dry type sieving/20 μm to 63 mm
- Wet Sieving/20 μm to 10 mm
- quantity
- dry type Sieving/100 Using μm Up to 100 g/63 Using mm Up to 2 kg
- Wet Sieving/20 to 100 g
- Time (Dep***s on the sample)
- dry type sieve/3 to 20 minutes (15 to 30 min for fine sample)
- Wet Sieving/3 to 10 Minutes (For a fine sample, about 15 minutes.)
- Sieve Loading Numbers and Type
- 6 stages (excluding saucers)/Φ 200 x (Height) 60 mm
- 8 stages (excluding saucers)/Φ 75/Φ 100/Φ 150 x (Height) 45 mm
- power supply: AC100 to 120 V or 200 to 240 V 50/60 Hz 50 W
- power cord length : 2.5 m (3P Plug)
- *Sieve and saucer are not included.
*This product might require extra fees.
