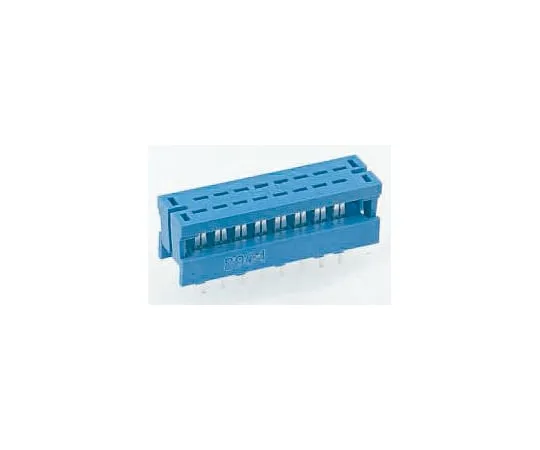

63-4628-28 Ribbon Cable Connector AMP-LATCH 622 Series Male 14 Pole 2 Row 1658525-7
model:
63-4628-28
brand:
TE Connectivity
Product Description
Product Model: 63-4628-28Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4628-28
Product Brand: TE Connectivity
Features
- TE Connectivity AMP-Latch 622 Series 2.54 x 2.54 mm IDC DIP Plug Ribbon Cable Connector
- The AMP-Latch 622 Series IDC DIP Plug Ribbon Cable Connector features 2.54 x 2.54 mm center and single-slot tuning-fork IDC flat contacts.
- This IDC DIP plug ribbon cable connector is made of UL 94V-0 grade blue fiberglass thermoplastic for *** with 26~28 AWG single or stranded PVC insulated ribbon cables.
- Sturdy glass fiber reinforced thermoplastics 8.97 mm in height capable of crimping cables before or after soldering connectors to the substrate
Spec
- Number of pieces: 1
- Number of contacts: 14
- Number of lines: 2
- G***er: Male
- Pitch: 2.54 mm
- Mounting type: cable mount
- Body orientation: right angle
- Terminal method: IDC
- Current rating: 1A
- Contact Plating: Tin on Nickel
- Series: AMP-LATCH 622
- Minimum operating temperature: -55 degrees C
- Operating temperature mAx: + 125 C
- Contact Material: Beryllium Copper
- RoHS compliance status: Compliance
- Securities Code: 462 -111
