63-4628-24 Board Header 40 poles 2 rows straight wire to board 2.54 mm amplifier latch 3-1761603-3
model:
63-4628-24
brand:
TE Connectivity
Product Description
Product Model: 63-4628-24Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4628-24
Product Brand: TE Connectivity
Features

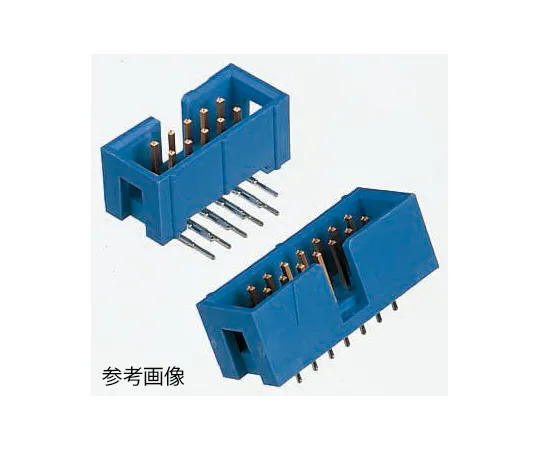

- TE Connectivity AMP-Latch ribbon cable header connector
- AMP-Latch ribbon cable header connector with 2.54 mm center line.
- Part No. X-1761681-X and X-1761679-X are low profile with center and military polarizationPart No. X-176133-X is low profile with center and dual polarizationBar Part No. X-827745-X and X-827746-X are low profile with no polarizationPart No. X-828581-X and X-88582-X are standard profile with center and dual polarizationPart No. X-828584-X, X-828586-X, X-828588-X and X-828590-X are standard profile with latch and center/dual polarizationPart No. X-1761606-X is low profile with latch and center/military polarizationPart No. X-1761603-X, X-1761605-X and X-28172X-X are low profile with center polarization
Spec
- Number of pieces: 1
- Series: AMP-LATCH
- Pitch: 2.54 mm
- Number of contacts: 40
- Number of lines: 2
- Body orientation: straight
- Shroud/Unshroud: Shroud
- Installation type: through hole
- Terminal Method: Solder
- Contact Plating: Gold
- RoHS compliance status: Compliance
- Securities Code: 461 -809
