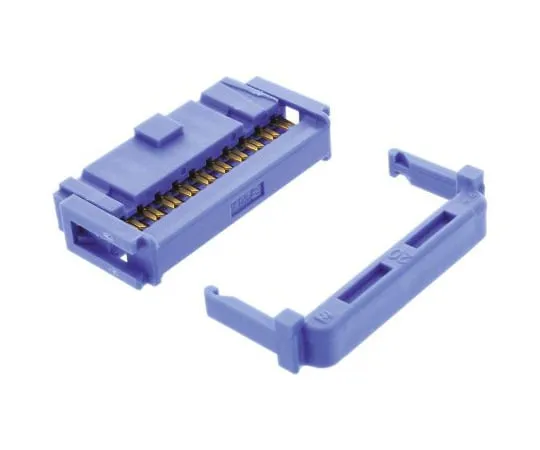

63-4628-07 Ribbon Cable Connector AMP-LATCH 622 Series Female 20 Pole 2 Row 1658527-8
model:
63-4628-07
brand:
TE Connectivity
Product Description
Product Model: 63-4628-07Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4628-07
Product Brand: TE Connectivity
Features
- TE Connectivity AMP-Latch 622 Series 2.54 mm IDC Ribbon Cable Socket Connector
- The 622 Series 2.54 mm IDC Ribbon Cable Connector with Military/Center Polarity is for 26-28 AWG single or stranded PVC insulated ribbon cables.
- This 622 Series IDC ribbon cable connector has a UL 94V-0 grade blue fiberglass thermoplastic housing and gold plated beryllium copper contacts with strain relief (except part number < 798-1521') 798-1521/, < 680-1180') 680-1180/, < 680-1183') 680-1183/, < 680-1562') 680-1562/, < 718-9018') 718-9018/, and < 821-9029') 821-9029 /).
Spec
- Number of pieces: 1
- Number of contacts: 20
- Number of lines: 2
- G***er: Female
- Pitch: 2.54 mm
- Mounting type: cable mount
- Body orientation: right angle
- Terminal method: IDC
- Contact Plating: Gold on Nickel
- Series: AMP-LATCH 622
- Contact Material: Beryllium Copper
- RoHS compliance status: Compliance
- Securities Code: 461 -203
