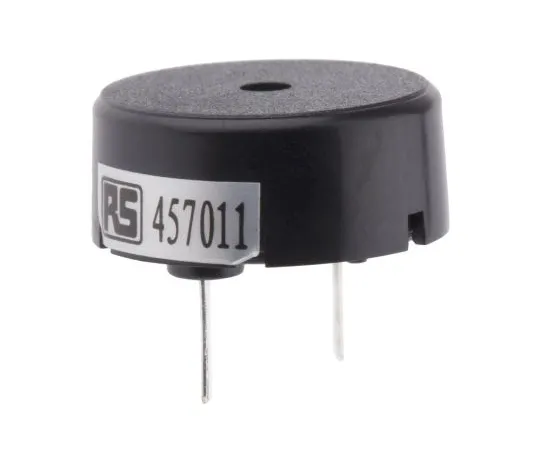

63-4627-47 RS PRO 78dB, Through Hole Continuous External Piezo Buzzer 457-011
Product Description
Product Model: 63-4627-47Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4627-47
Product Brand: RS PRO
Features
- Circular Substrate-Mounted Piezo Transducer
- Circular Case Substrate-Mounted Type External drive circuit is required for transducer operation with high sound output
Spec
- Mounting Type:Through Hole
- Minimum Supply Voltage:1V ac
- Maximum Supply Voltage:30V ac
- Sound Level:78dB
- Drive Type:External
- Tone Type:Continuous
- Diameter:17mm
- Height:7mm
- Dimensions:17 (Dia.) x 7mm
- Minimum Operating Temperature:-20°C
- Maximum Operating Temperature:+70°C
- Maximum Frequency:4.5kHz
- Minimum Frequency:3500Hz
- CODE No.:457-011
