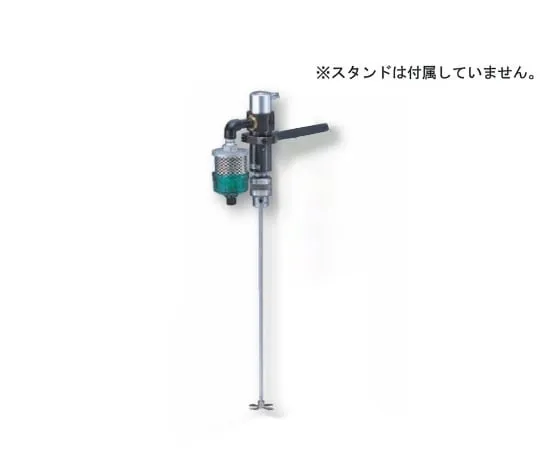

1-4208-03 Air Stirrer 260W AS-3
Product Description
Product Model: 1-4208-03Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-4208-03
Product Brand: AS ONE Corporation
Features
- The motor stops operating when the load is overloaded, and returns to normal operation when the load is reduced.
- The number of components is small and the structure is robust.
- The speed can be changed within a certain range by adjusting the air supply (deceleration valve).
- It has a built-in exhaust cleaner, which has a silencing effect and an oil mist removal effect.
Spec
- Speed: 600 rpm
- Torque (at maximum power): About 4 N/m (40kgf/cm)
- Maximum power: 260W
- Supply air pressure: about 0.59 MPa (6kg/cm 2)
- Used shaft diameter: 13mm
- Port diameter: PT 1/4
- Weight (body only): 2.35kg
- Accessories: Stirring bar,φ 8 x 450mm 1 piece, Stirring blade,φ 60mm x 1 piece, coupler, 20PM x 1 piece
- *Stand muff is not included.
