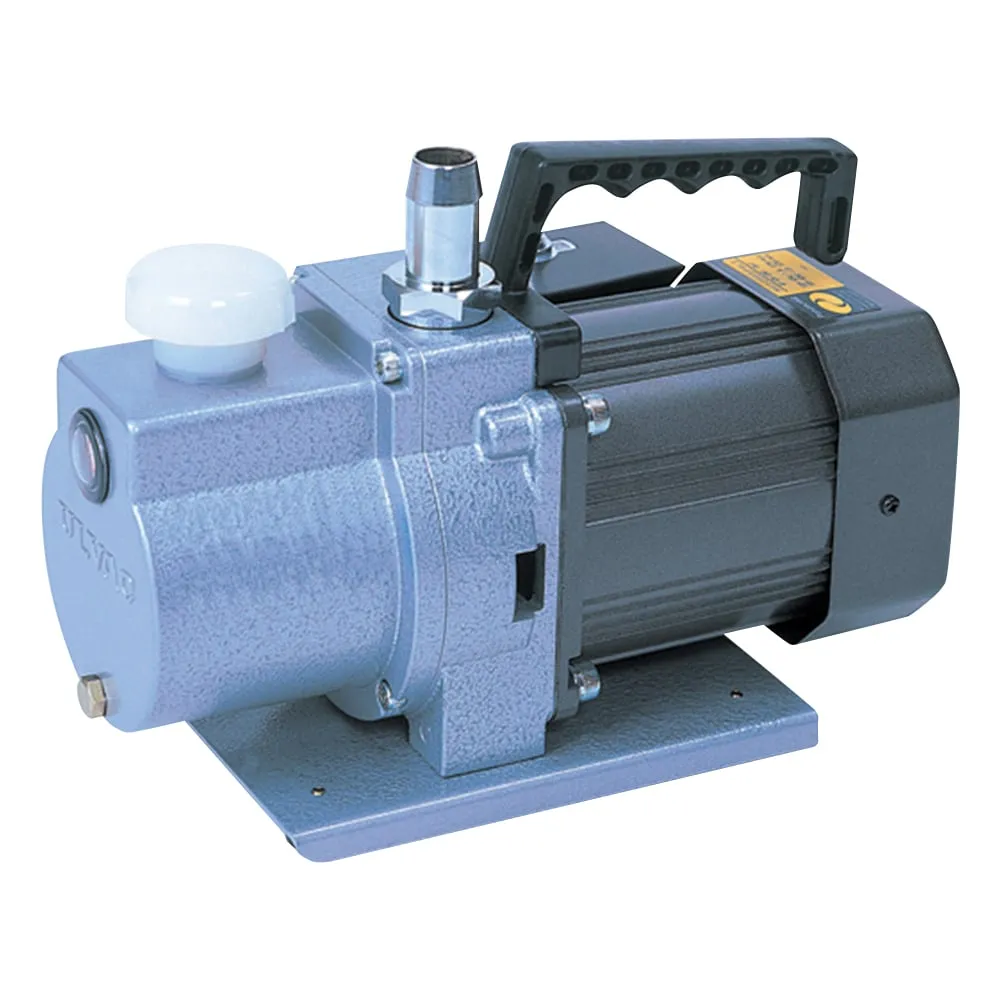

1-672-03 Oil Rotary Vacuum Pump 130 x 228 x 165mm 2 Stage Type G-10DA
Product Description
Product Model: 1-672-03Product Brand: ULVAC, Inc. Featu […]
Contact Us
Product Details
Product Model: 1-672-03
Product Brand: ULVAC, Inc.
Features
- Low bass vibration.
- Since it is beltless and directly connected to the motor, it can be easily incorporated into the device.
Spec
- Model number: G-10DA
- Type: 2 stage type
- Exhaust speed (effective) (L/min): 10/12 (50/60Hz)
- Achieving pressure (Pa): 1.3 (1 x 10^-2Torr)
- Power (V): Single-phase 100
- Inlet diameter (OD) x (ID) mm: 18 x 14 (M20 x P1)
- Oil ***d: SMR-100 (included)
- Oil volume: 250mL
- Size: 130 x 228 x 165
- Weight: 5.5kg
- Small direct connection type
- *When using an inlet pipe smaller than the inlet pipe inner diameter of the pump, The effective exhaust speed may decrease slightly.
