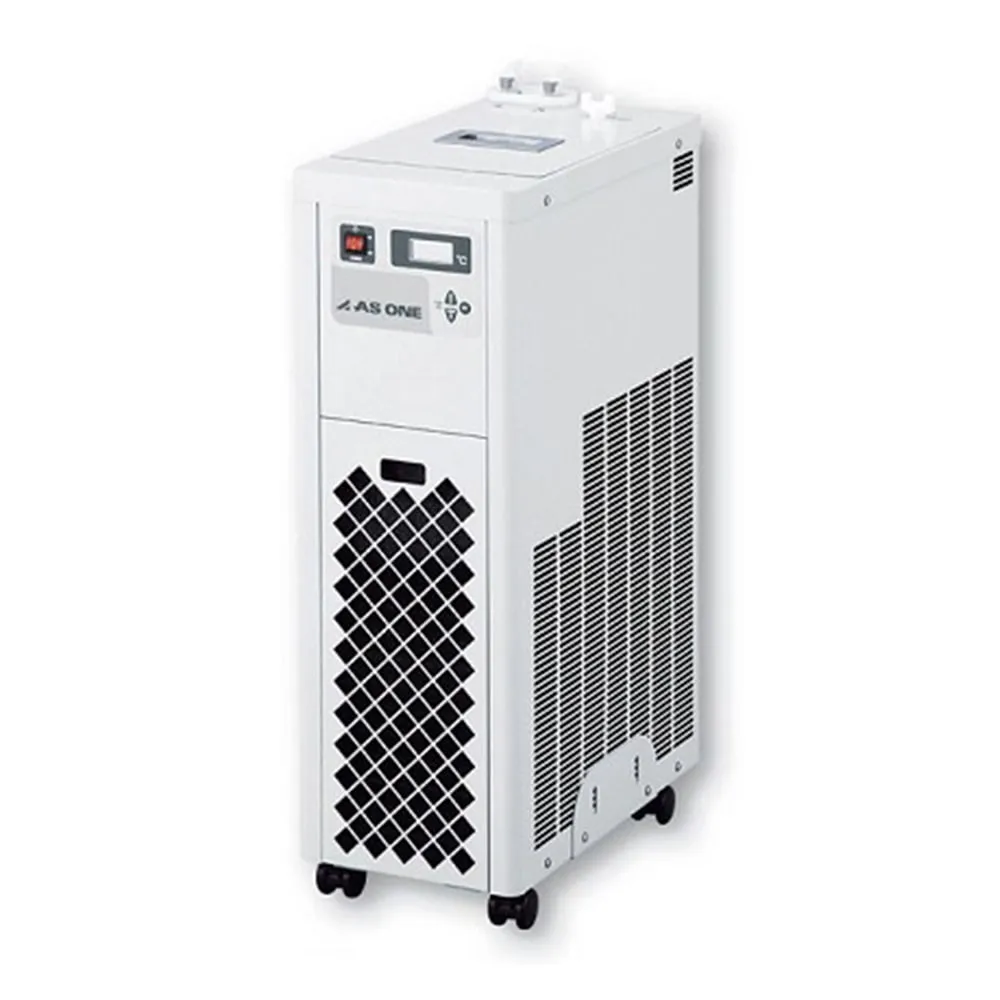

1-1585-02 Low-Temperature Circulating Water Circulator 248 x 448 x 748mm LTC-S1400S
Product Description
Product Model: 1-1585-02Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-1585-02
Product Brand: AS ONE Corporation
Features
- Can also be ***d as a low temperature constant temperature water bath (open tank).
- It is compact but has a cooling capacity of 1400 W.
- Since the external circulation flow adjustment valve is built-in, the external circulation amount can be adjusted without providing bypass piping.
- Slim type can be installed next to the laboratory table.
- Space-saving type that does not trouble the installation site.
Spec
- Model number: LTC-S1400S
- External circulation method: Sealed system circulation method
- Type of liquid ***d: Water, ethylene glycol water solution, ethanol water solution
- Maximum head: 9.5/13.5m (50/60Hz, flow rate at 0L/min)
- Maximum flow rate: 14/17L/min (50/60Hz, with no load)
- Refrigerating machine/air-cooled vertical fully sealed type 675W/R407C
- Refrigerating machine control system: ON/OFF control
- Water tank dimensions/capacity/material: 198 x 248 x 218mm, approx. 9L, SUS304
- Nozzle diameter: Outer diameter φ10.5mm/φ7.5mm (Exchange type)
- Safety mechanism Electric leak breaker (with excess current), refrigerating machine overload relay, high-pressure switch, circulation pump thermal protector, refrigerating machine protection ON/OFF timer, fan motor thermal protector, overtemperature alarm, sensor defect alarm, high-pressure alarm
- Power supply: 100VAC 50/60Hz 12/13A
- External dimensions: 248 x 448 x 748mm
- Weight: Approx 38kg
- Accessories: L type nozzle/straight nozzle (φ10.5 x 2 pieces each, φ7.5 x 2 pieces each), outlet adapter x 1 piece
- Temperature adjustment range (℃): -20 to +20
- Cooling capacity: 1400W (20℃)
