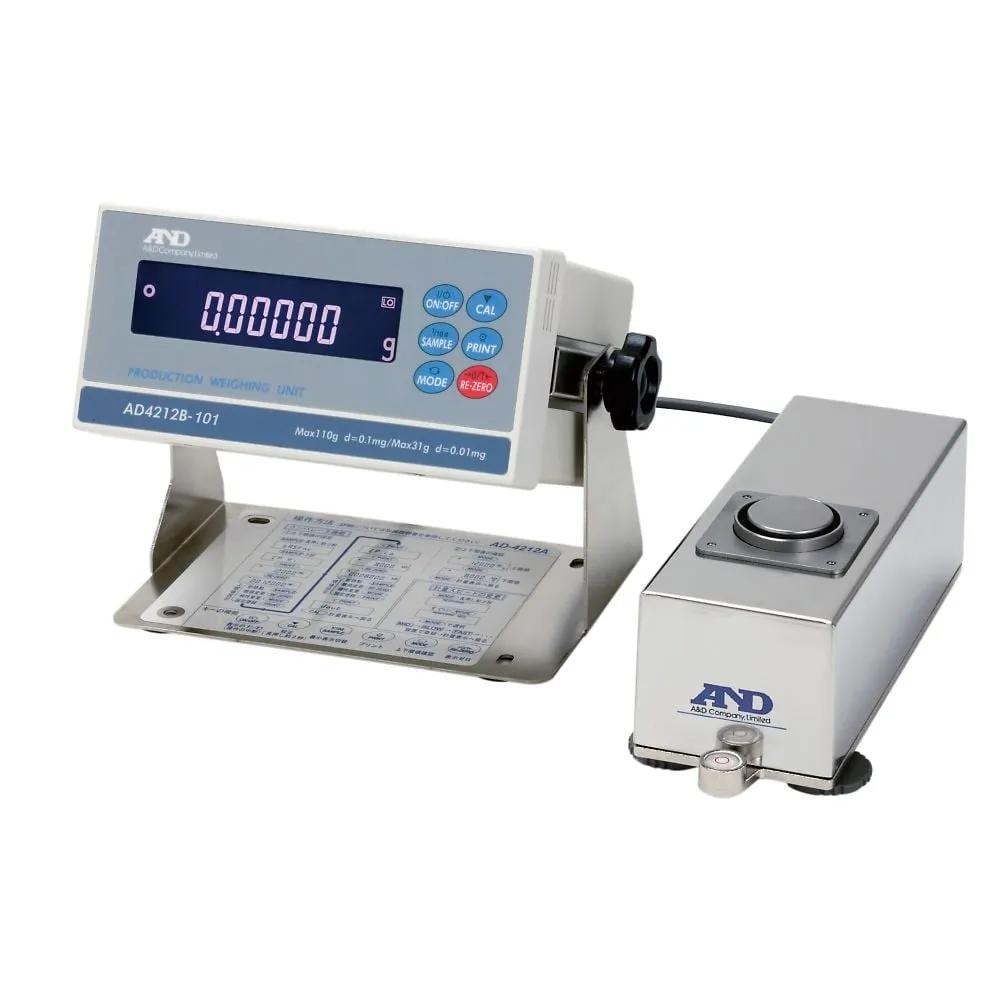

61-4673-57 High Precision Measuring Sensor 31G 0.01mg AD4212B-101
Product Description
Product Model: 61-4673-57Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4673-57
Product Brand: A&D
Features
- [Applications]
- Ideal for pharmaceuticals, electronic components, resist inks, coatings, oils, etc.
- [Features]
- Metering sensor with very compact size for fast response and high precision integration.
- Minimum display of 1 μg~ (AD-4212B-23), allowing trace weighing equivalent to analytical balance on the production line
- Compact weighing section 80 mm width
- Free layout without restriction on space.
- Stainless steel measuring section with excellent chemical resistance.
- Dust- and droplet-proof measuring section IP54
- Calibration weight standard included
- RS-232C interface standard included
- Measurement sensor system with SHS (R)
- Data direct delivery software with WinCT enabled
- LAN enabled
- Fast response of approximately 4.0 seconds in the 0.01 mg range (when FAST is set)
Spec
- Weighing capacity: 31g/110g
- Minimum display: 0.01mg/0.1mg
- Time required for stability (good environment, Setting FAST): About 4.0 seconds/about 2.5 seconds
- I/O section: RS-232C: Bi-directional, 600 - 19200bps/Comparator output: 3 stages contact output (with buzzer)/External contact input: Re-zero input, Print input
- Weighing tray dimensions: φ34mm
- Weighing tray material: Stainless Steel (SUS316)
- Accessories: Instruction manual, Calibration weight, AC adapter, Stainless steel windshield
