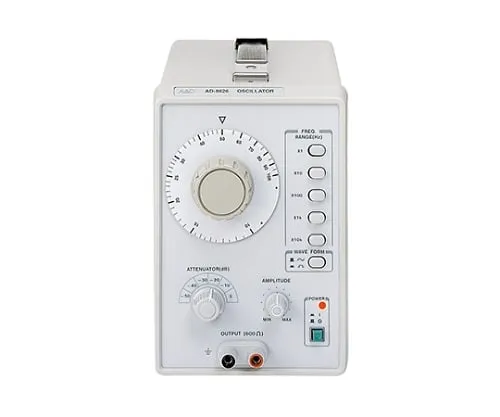

61-4673-39 Oscillator 10Hz - 1mhz AD-8626 AD-8626
Product Description
Product Model: 61-4673-39Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4673-39
Product Brand: A&D
Features
- [Application]
- School experiment, electronic circuit check, hobby-related
- [Features]
- 1 MHz low strain rate oscillator
- 10 Hz to 1 MHz wide frequency range (5 ranges)
- 0.02% or less (500 Hz to 20 kHz) positive arc wave with strain rate
- 10dB step attenuator (0 to -50dB) built-in
Spec
- Signal output section, output frequency range: 10Hz - 1MHz (5 ranges)
- Signal output section, output waveform: Square wave, Sine wave
- Signal output section, output amplitude: Sine wave, 5Vrms or more (at 600Ω load), Square wave, 10Vpp or more (at no load)
- Signal output section, output frequency accuracy: Dial accuracy ±(3% + 1Hz) (accuracy at the position of the dial 10 and 100)
- Signal output section, output impedance: Approximately 600Ω
- Signal output section, attenuator: 0, -10, -20, -30, -40, -50 (dB), (6 steps, Accuracy ±1dB, At 600Ω load)
- Sine wave, distortion rate: 0.02% or less (500Hz - 20kHz)
- Square wave, rise time, fall time/symmetry: 200ns or less/±5% (1kHz, At maximum output)
- Input voltage: 100VAC ±10%, 50Hz/60Hz
- Accessories: Instruction manual, Power cable 1 cable, Output cable (banana-alligator) 1 cable
